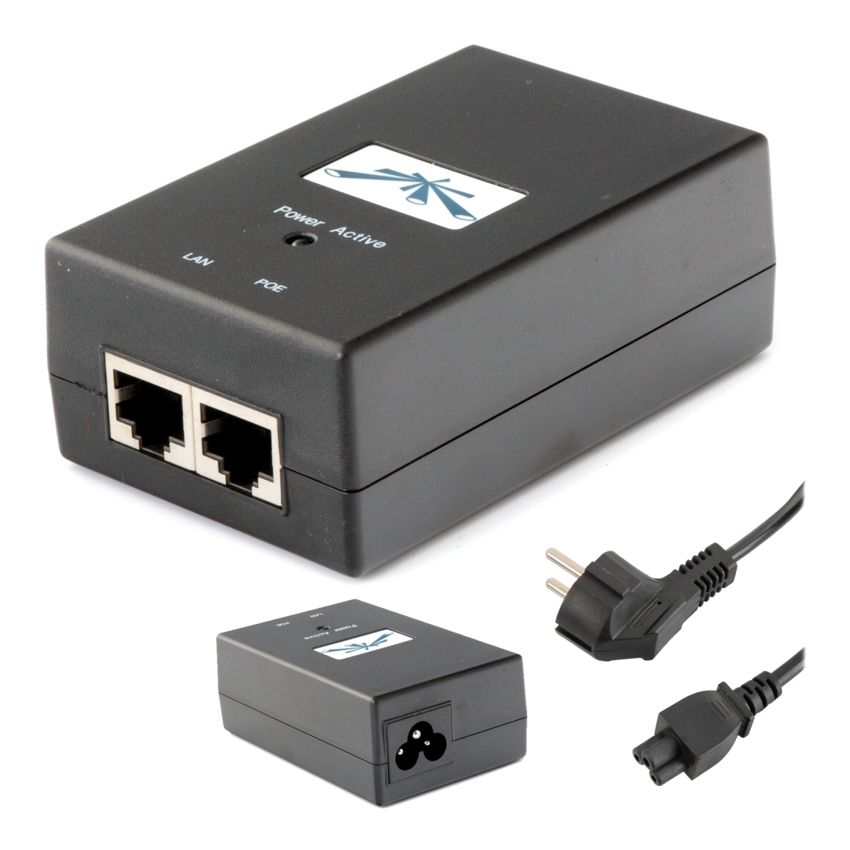

UBIQUITI POE adapter 15V(12W)
UBIQUITI POE adapter 15V(12W)
Τεχνικά χαρακτηριστικά:
Output Voltage : 15VDC @0.8A
Input Voltage : 90-260VAC @47-63Hz
Input Current : 0.3A @120VAC, 0.2A @230VAC
Inrush Current : <15A peak @120VAC, <30A peak @230VAC
Efficiency : 70+%
Output Ripple : 1% Max
Switching Frequency : 200kHz
Line Regulation : +/- 0.5%
Load Regulation : +/- 1%
Operating Temperature : -10C to +60 deg C
Storage Temperature : -20 to +85 deg C
Operating Humidity : 5% to 90% non condensing
Size (LxWxH) : 85x43x30 mm
Weight : 4oz
AC Ceonnector : IEC-320 C6
Data IN / POE RJ45 Shielded Socket
80% Current Indicator Power LED will change color
Surge Protection Common Mode
Clamping Protection : 11V Data, 77.5V Power
Max Surge Discharge : 1200A (8/20uS) Power
Peak Pulse Current : 36A (10/1000uS) Data
Shunt Capacitance : <5pf data
Response Time : <1nS
Compliance UL, EN55022 (CISPR22) class B, Meets CE
