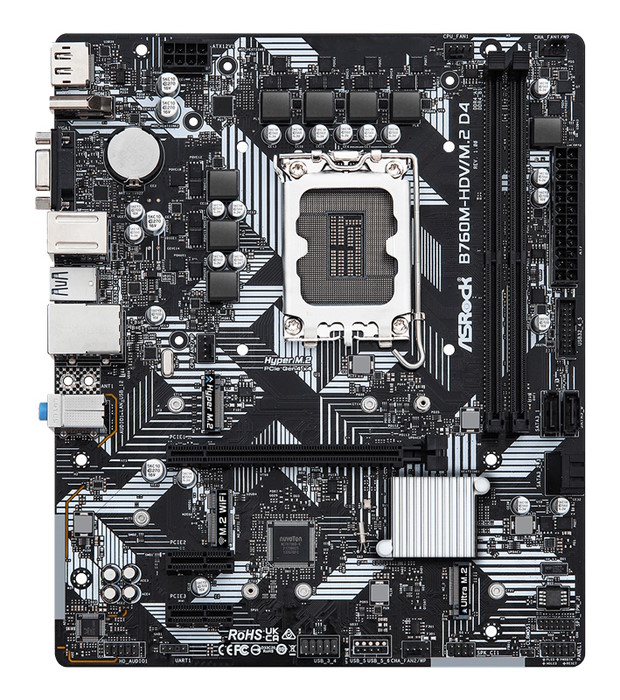

ASROCK μητρική B760M-HDV/M.2 D4, 2x DDR4, s1700, USB 3.2 Gen1, mATX
ASROCK μητρική B760M-HDV/M.2 D4, 2x DDR4, s1700, USB 3.2 Gen1, mATX
Η H610M-HVS/M.2 R2.0 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1700 και βασίζεται στο chipset B760 της Intel.
Διαθέτει 3 εξόδους γραφικών: HDMI, DisplayPort και D-Sub.
-Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
-5+1+1 Power Phase
-Supports DDR4 5333MHz (OC)
-1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
-Graphics Output Options: HDMI, DisplayPort, D-Sub
-Realtek ALC887/897 7.1 CH HD Audio Codec
-4x SATA3, 1x Hyper M.2 (PCIe Gen4x4)
-1x Ultra M.2 (PCIe Gen3x4 & SATA)
-1x USB 3.2 Gen1 Type-C (Rear)
-5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
-5x USB 2.0 (2 Rear, 3 Front)
-Realtek 1G LAN
-Supports ASRock Auto Driver Installer
Τεχνικά χαρακτηριστικά
CPU: Supports 13th & 12th Gen Intel Core Processors (LGA1700)
Supports: Intel Hybrid Technology, Turbo Boost Max 3.0 Technology, Thermal Velocity Boost (TVB), Adaptive Boost Technology (ABT)
Chipset: Intel B760
Memory: 2x DDR4 DIMM Slots, Max. capacity of system memory: 64GB
BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
Graphics: Intel Xe Graphics Architecture (Gen 12), 1x HDMI 2.1, 1x DisplayPort 1.4, 1x D-Sub
Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
LAN: Gigabit LAN 10/100/1000 Mb/s, Realtek 8111H
Slots: CPU: 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, Chipset: 2x PCIe 3.0 x1 Slots (PCIE2 and PCIE3), 1x M.2 Socket (Key E)
Storage CPU: 1x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Storage Chipset: 1x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes, 4x SATA3 6.0 Gb/s Connectors
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB: 1x USB 3.2 Gen1 Type-C (Rear), 5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5x USB 2.0 (2 Rear, 3 Front)
OS: Microsoft Windows 10 64-bit / 11 64-bit
Form Factor: Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Accessories: 1x User Manual, 1x I/O Shield, 2x SATA Data Cables, 3x Screws for M.2 Sockets
Connector:
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
2x USB 2.0 Headers (Support 3 USB 2.0 ports)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O:
2x Antenna Mounting Points
1x PS/2 Mouse/Keyboard Port
1x D-Sub Port
1x HDMI Port
1x DisplayPort 1.4
1x USB 3.2 Gen1 Type-C Port
3x USB 3.2 Gen1 Type-A Ports
2x USB 2.0 Ports
1x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
