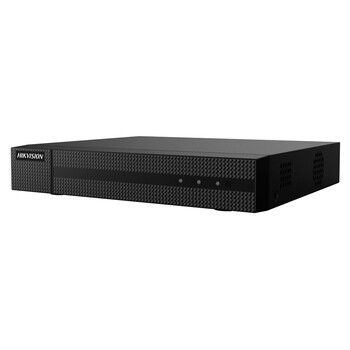

HIKVISION HIWATCH DVR υβριδικό καταγραφικό HWD-5104M, H.264+, 4 κανάλια
HIKVISION HIWATCH DVR υβριδικό καταγραφικό HWD-5104M, H.264+, 4 κανάλια
Υβριδικό DVR καταγραφικό 5 σε 1 (HDTV, AHD, CVI, CVBS, IP video input) της σειράς HiWatch από την HIKVISION. Υποστηρίζει έως και 4 αναλογικά κανάλια ή 5 κανάλια IP με ανάλυση εγγραφής 1080p και κωδικοποίηση βίντεο H.264+. Επιπλέον υποστηρίζει HDD έως 6ΤΒ.
-H.264+/H.264 video compression
-HDTVI/AHD/CVI/CVBS/IP video input
-Up to 4-ch analog video input or 5-ch IP camera input (up to 1080p)
-Max. 1200 m for 720p HDTVI signal transmission
-Support Turbo HD video input
-Two-way audio
-HDMI & VGA output
-Multi-channel synchronous playback
-High definition real-time recording
-Live view from smart device or Internet
-Easy smart search for motion event during playback
-Hik-connect P2P function for easy remote management
Τεχνικά χαρακτηριστικά
Video compression: H.264+/H.264
Analog video input: 4-ch
HDTVI input: 1080p/25fps, 1080p/30fps, 720p/25fps, 720p/30fps
AHD input: 1080p/25fps, 1080p/30fps, 720p/25fps, 720p/30fps
HDCVI input: 1080p/25fps, 1080p/30fps, 720p/25fps, 720p/30fps
CVBS input: Support
IP video input: 1-ch (up to 5-ch)
Audio compression: G.711u
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
HDMI/VGA output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Encoding resolution: When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF, When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Main stream Frame rate: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF @25fps (P)/30fps (N), When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF @25fps (P)/30fps (N), For SD stream access: WD1/4CIF/VGA/CIF @25fps (P)/30fps (N)
Sub-stream Frame Rate: 2CIF @6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)
Video bit rate: 32 Kbps to 4 Mbps
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate: 64 Kbps
Dual stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 4-ch
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA Interface: 1 SATA interface
Hard Disk Capacity: Up to 6 TB capacity for each disk
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface: Rear panel: 2x USB 2.0
Power supply: 12 VDC
Consumption (without HDD): ? 8 W
Working temperature: -10?C to +55?C
Working humidity: 10% to 90%
Dimensions (W x D x H): 260 x 222 x 45 mm
Περιεχόμενα συσκευασίας
DVR καταγραφικό
Ενσύρματο ποντίκι
Αντάπτορας τροφοδοσίας
Καλώδια σύνδεσης
Βίδες
Εγχειρίδιο χρήσης
