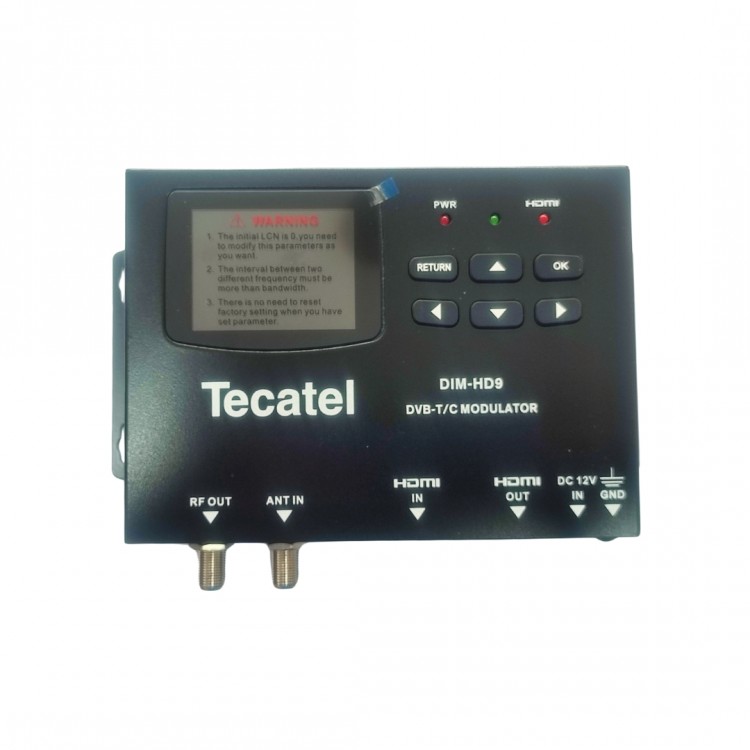

DIGITAL MODULATOR COFDM with HDMI input and output, USB and RCA A/V input.
- Digital Terrestrial TV modulator (VHF - UHF).
- Frequency range: 50-950 MHz.
- Output level: -31 ~ +6 dBm / 76 ~ 113 dBuV.
- Selectable Video/Audio PID and video Bitrate.
- Editable Channel name.
- QPSK, 16QAM and 64QAM.
- High frequency stability.
- Friendly programming through LCD and control buttons.

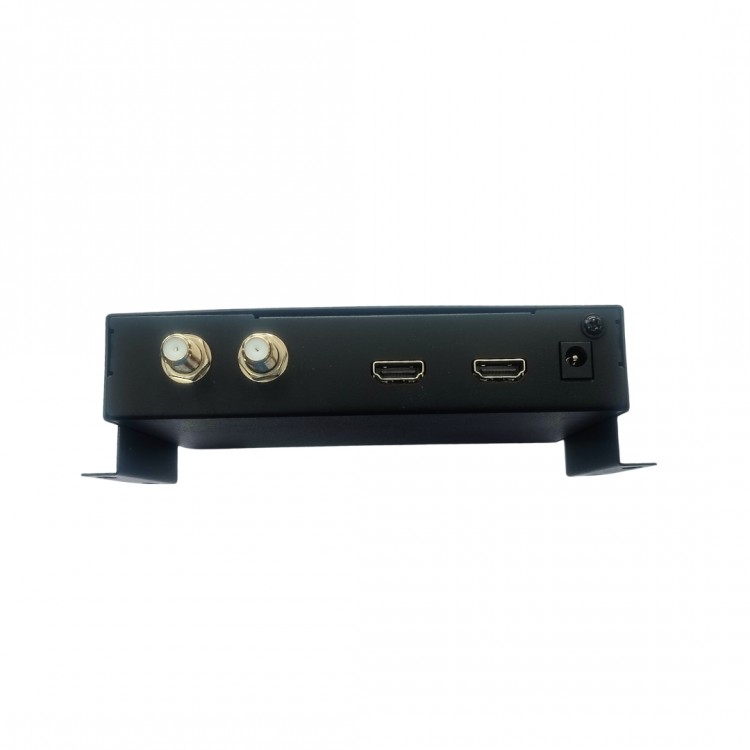

- Loop through HDMI and A/V RCA input.
- HDMI INPUT
- Video encoding: MPEG-4 AVC/H.264
- Interface: HDMI, RCA(PAL, NTSC)
- Resolution: 1920*1080p@60, 1920*1080p@50, 1920*1080i@60, 1920*1080i@50, 1280*720p@60, 1280*720p@50
- Bit rate: 8.000~18.000 Mbps, AUTO
- Aspect ratio: 16:9, 4:3
- Audio: MPGI layer 2 / Sample rate: 48KHz / Bit rate: 64, 96,128, 192, 256, 320 kbps
- MODULATED OUTPUT
- LCN insertion: Yes
- Standard: DVB-T/COFDM
- FFT Mode: 2K - 8K
- Guard intervals: 1/4, 1/8, 1/16, 1/32
- Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
- Constellations: QPSK / 16QAM / 64QAM
- Frequency range: 50-950 MHz
- Output level (adjustable 1 dB step): -31 ~ +6 dBm / 76 ~ 113 dBuV
- Channel Bandwith (selectable): 6 -7-8 MHz
- MER: > 31 dB typ.
- Connector type: “F” female
- GENERAL
- Power supply: AC Adaptor 100-240VAC - 12VDC-2A
- Operational temperature range: 0 ~ +45 ºC
- OSD Languages: English, Turkish, Italian
- Dimensions / Weight (product): 200 x 112 x 42 mm / 0.479 Kg
