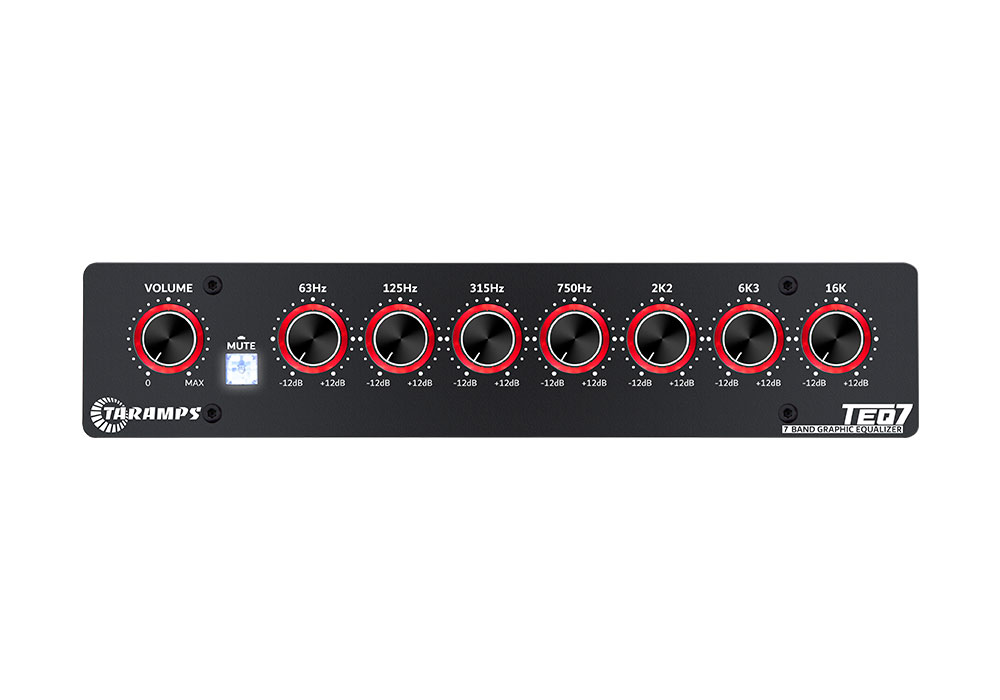

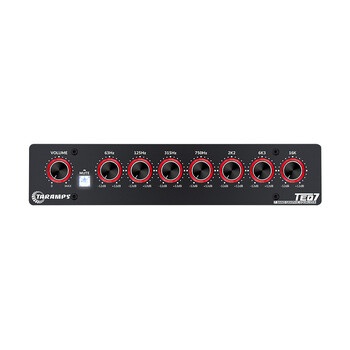

Taramps TEQ 7 STEREO 7-BAND GRAPHIC EQUALIZER
Description

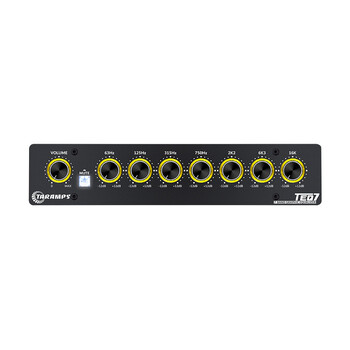

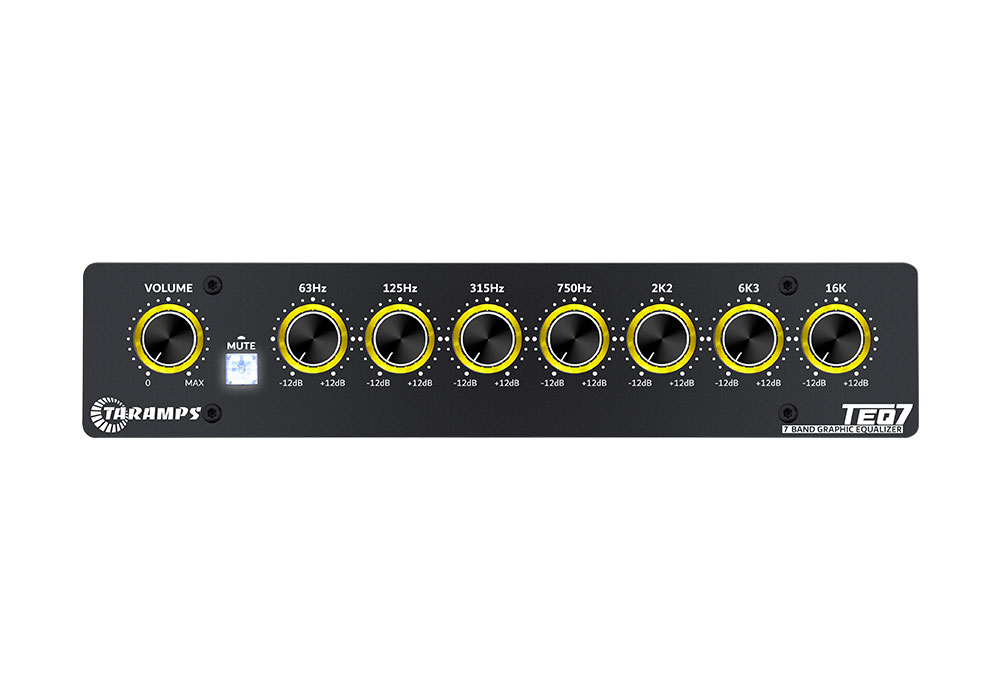

The TEQ 7 is a stereo 7-band graphic equalizer designed to enhance your listening experience. With its compact design, the TEQ 7 easily fits into any 12V powered car audio system, providing a noticeable upgrade in quality. Its 7 bands of equalization have been carefully developed to guarantee precise and efficient control of audio frequencies, allowing you to adjust the sound according to your personal preferences. In addition, the TEQ 7 has audio input via RCA and High Level audio input with automatic activation, HPF and LPF filters, and an Anti-Pop system, which prevents unwanted “pops/noises” when turning the sound system on and off. It is available in three lighting options: Red, Blue or Yellow, so you can choose the one that best suits your vehicle’s aesthetics or your own style. Experience the power of the TEQ 7 and customize your sound experience.
Technical information
Número de canais de entrada
02
Número de canais de saída
02
Ajuste de ganho geral
-40 to +6dB
Impedância de entrada (RCA)
10K Ohms
Impedância de entrada (FIO)
56 Ohms
Output impedance
100 Ohms
Nível máximo de entrada (RCA)
28.28Vpp (10V RMS)
Nível máximo de entrada (FIO)
30.54Vpp (10.8V RMS)
Maximum output level
28.28Vpp (10V RMS)
Resposta de frequência (-1dB)
6Hz to 50KHz
Total Harmonic Distortion
0.01%
Relação Sinal / Ruído
0.01%
Crosstalk (separation between channels)
>80dB/1KHz
Equalizador gráfico, 7 bandas
Frequencies: 63, 125, 315, 750, 2.2K, 6.3K, 16KHz Attenuation / Gain: -12dB a +12dB Q factor: 1.414
Crossover (HPF e LPF)
Frequency cut: Selectable between 100Hz, 1KHz and 10KHz Filtros Butterworth: -12dB/Octave
Função de MUTE geral
Yes
Power Supply Voltage
9 to 16VDC
Consumo nominal (12,6V)
0.380A
Dimensões(LxAxP)
8.07" x 1.57" x 4.09" (205 x 40 x 104 mm)
Weight
1.1 lb (0.5 Kg)
