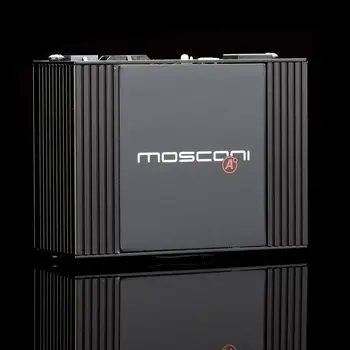

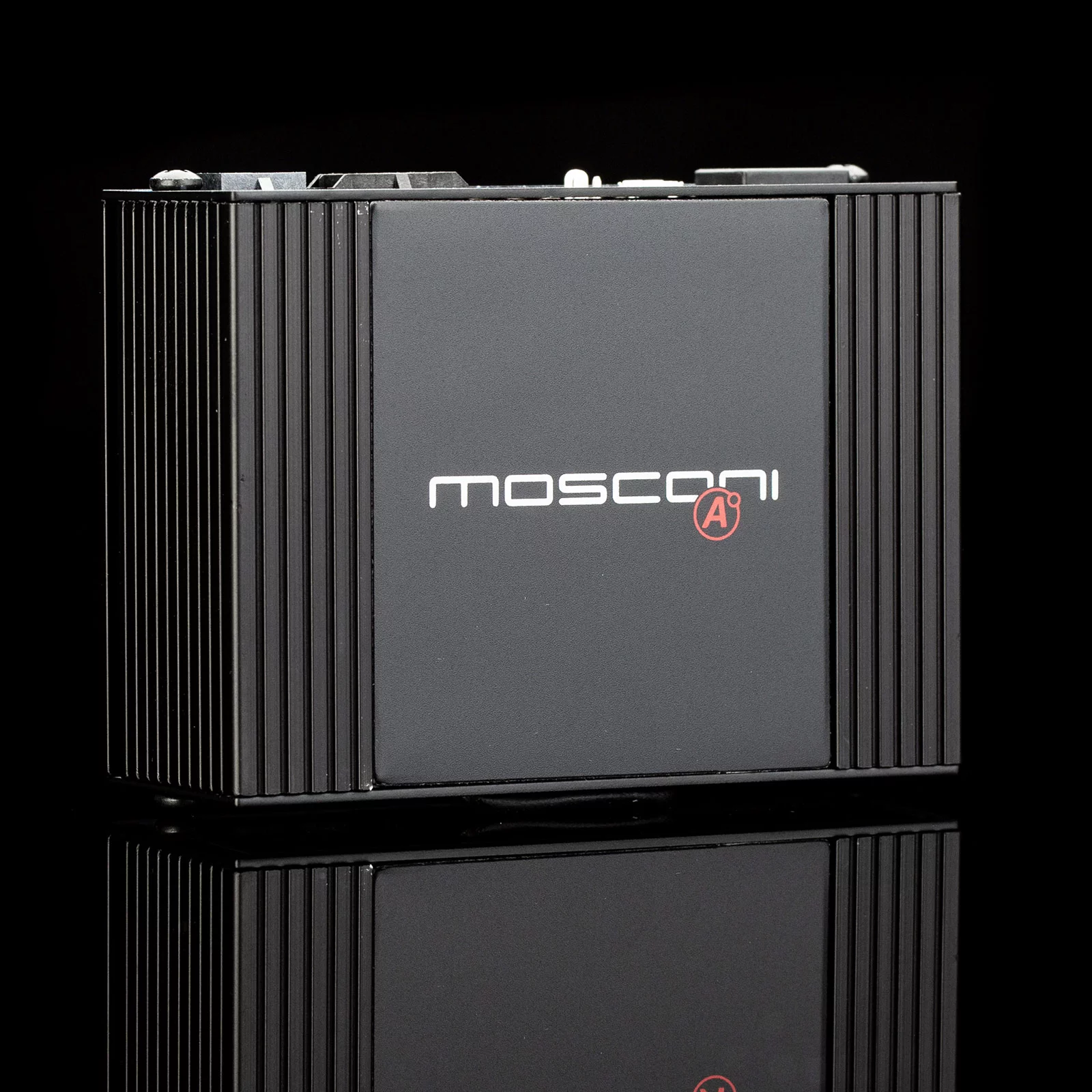

OVERVIEW MOSCONI ATOMO 4|6 DSP
ATOMO 4|6 DSP \"Matrix\" - Maximum performance in the smallest possible space
Extremely powerful DSP in a compact design. Four analog (high/low level) and three digital inputs (SP-Dif, Bluetooth streaming with MOS-BTS, BT+ with direct DSP access). Expandable to 8 analog inputs with MOS EXT4HLin. Compatible with 12 V and 24 V on-board power supply. Six analog outputs. 64 bit platform with dISC functions (dynamic equalizer and phase control). All connectors Molex industry standard. Direct RTC connection for volume, sublevel or input volume.
TECHNICAL DATA MOSCONI ATOMO 4|6 DSP
SPECIFICATIONS:
Operating Voltage: 8 V – 32 V
Operating Voltage via USB: 5 V
Input voltage: 2 Vrms (low-level) / 12 Vrms (high-level)
Dimensions: 86 x 65 x 34 mm
Weight: 180 gramm
4-channel input
6-channel output
Operating voltage 5 Volt / 8 - 32 Volt
