MAIN FEATURES: Woofer
Die-cast aluminum basket with optimized temperature management
Strontium ferrite magnet
Aluminum membrane with inverse aluminum dust cap
Butyl rubber surround, low distortion even with high deflections
2-layer copper wire voice coil, wound on temperature-resistant, electrically neutral polyimide voice coil former
Durable Connex centering spider with a woven voice coil feed
MAIN FEATURES TWEETER
25 mm dome
Neodymium magnet
CNC machined aluminum housing with a small installation depth
Protective grille with a very large opening area for high sound permeability and low reflections
Surface-mounted housing for mounting in 2 different beam angles
MAIN CHARACTERISTICS OF THE FREQUENCY SWITCH
Separate crossover housing for high and low tones for the best possible ease of installation, no mutual interference between the two signal paths due to chokes that are too close together
Use of high quality air coils, foil capacitors and MOX resistors in the direct signal path
12 dB woofer / 12 dB tweeter filter
3-stage level adjustment for the tweeter
Technical specifications

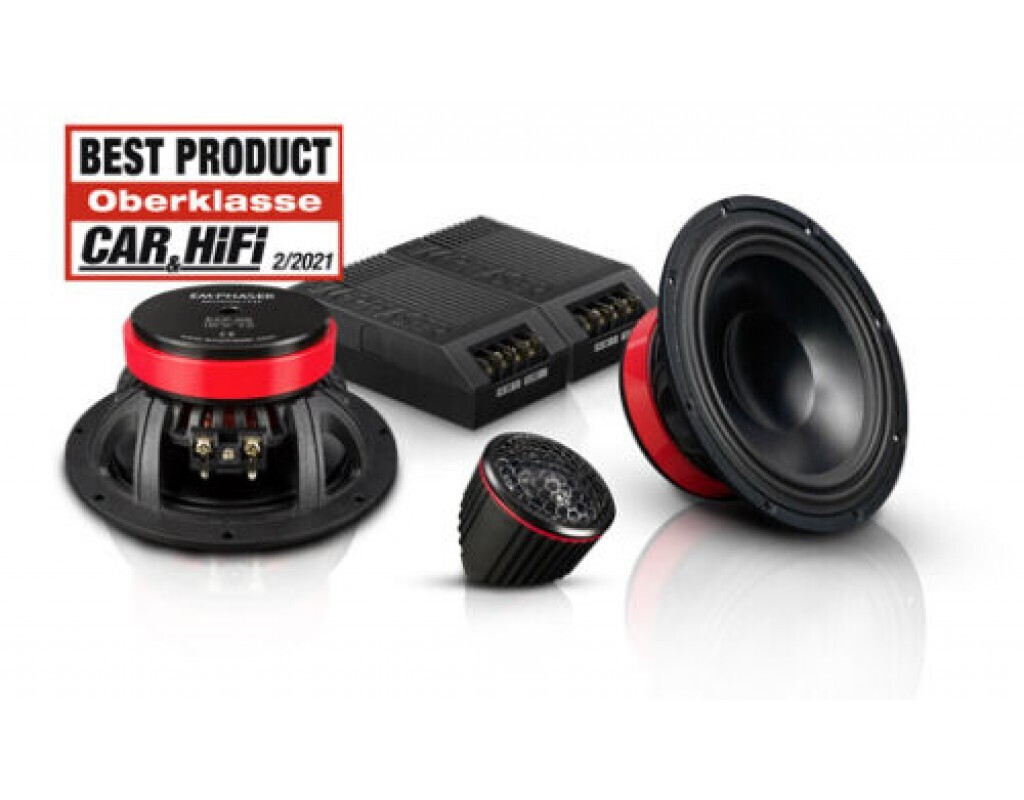

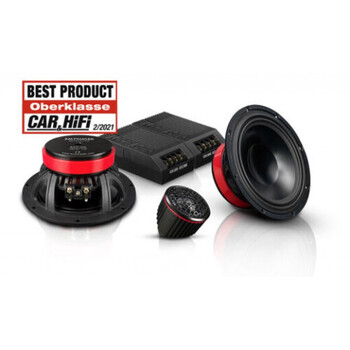

16.5 cm component system
Power rating: 120 W RMS
Nominal impedance: 4 ohms
Frequency response: 60 Hz - 22 kHz
Sensitivity 1W / 1m: 91 dB
Installation diameter: 145 mm
Installation depth: 64 mm
