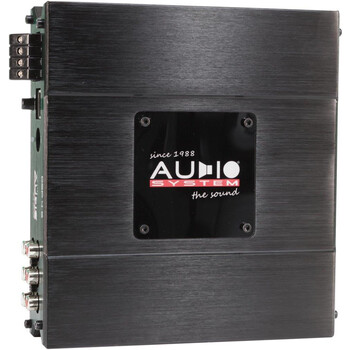

DSP-SERIES 6-Channel
6-chanel DSP with Freescale Multi-Core Chip
4x RCA inputs (Low level 2 to 4 Volt) and 4x Molex high-level inputs (5 to 20 Volt) automatic remote
6 RCA outputs (5 Volt)
1x AUX-input
1x optical input and 1x optical output
1x remote output, SD-card slot
Intuitive GUI
Dual-core-chip with 250 MHz processing power
Sampling rate 96 kHz (192 kHz optional)
Frequenzy range: 10-44000 Hz
Signal to noise ratio: digital:108 dB
analog: 102 dB
Crosstalk attenuation higher 92 dB
start/stopp ability 6 Volt/5sec
operating voltage 9,6-18 Volt
operating temperature -20C° to +80C°
Dimension 180 x 160 x 45 mm
