800 Watts SPL

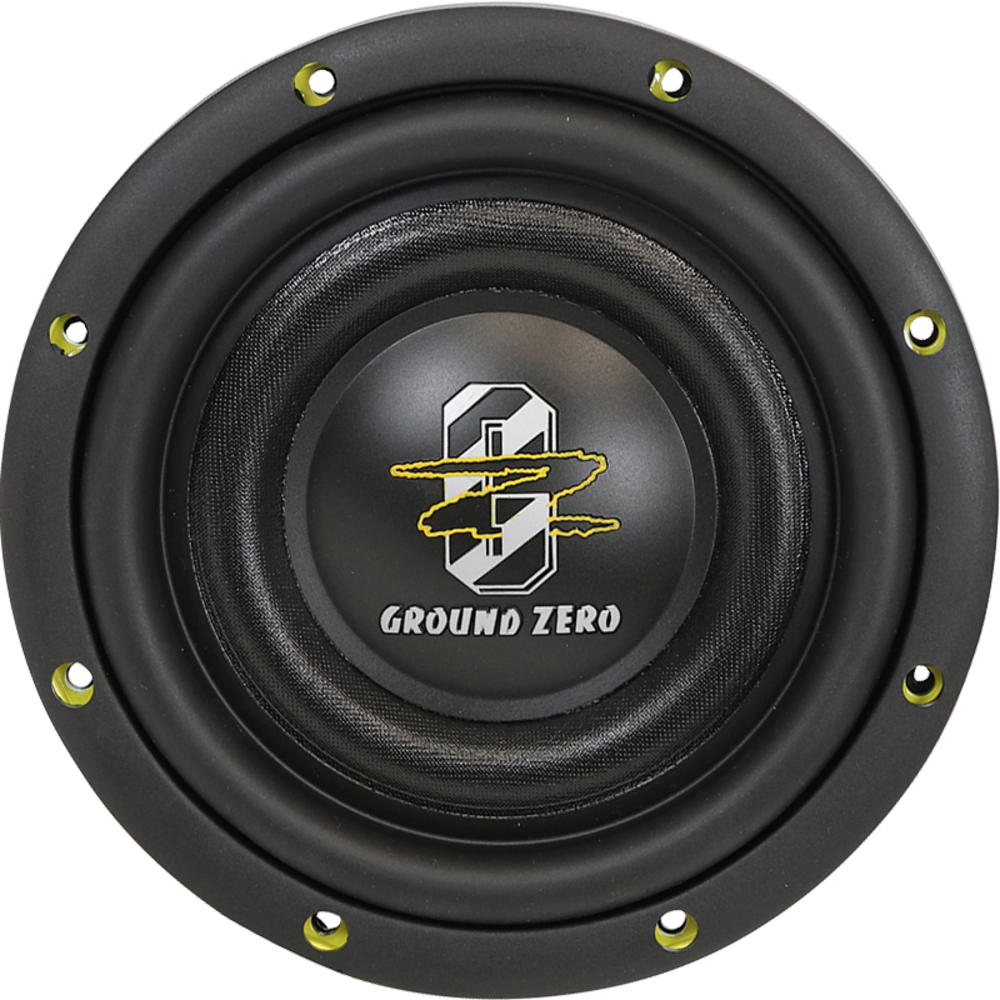

8″ high quality flat SPL subwoofer with alumiunum cast basket
8″ high quality flat SPL subwoofer
Klippel® optimized
Sandwich paper cone
Durable U-shape rubber surround

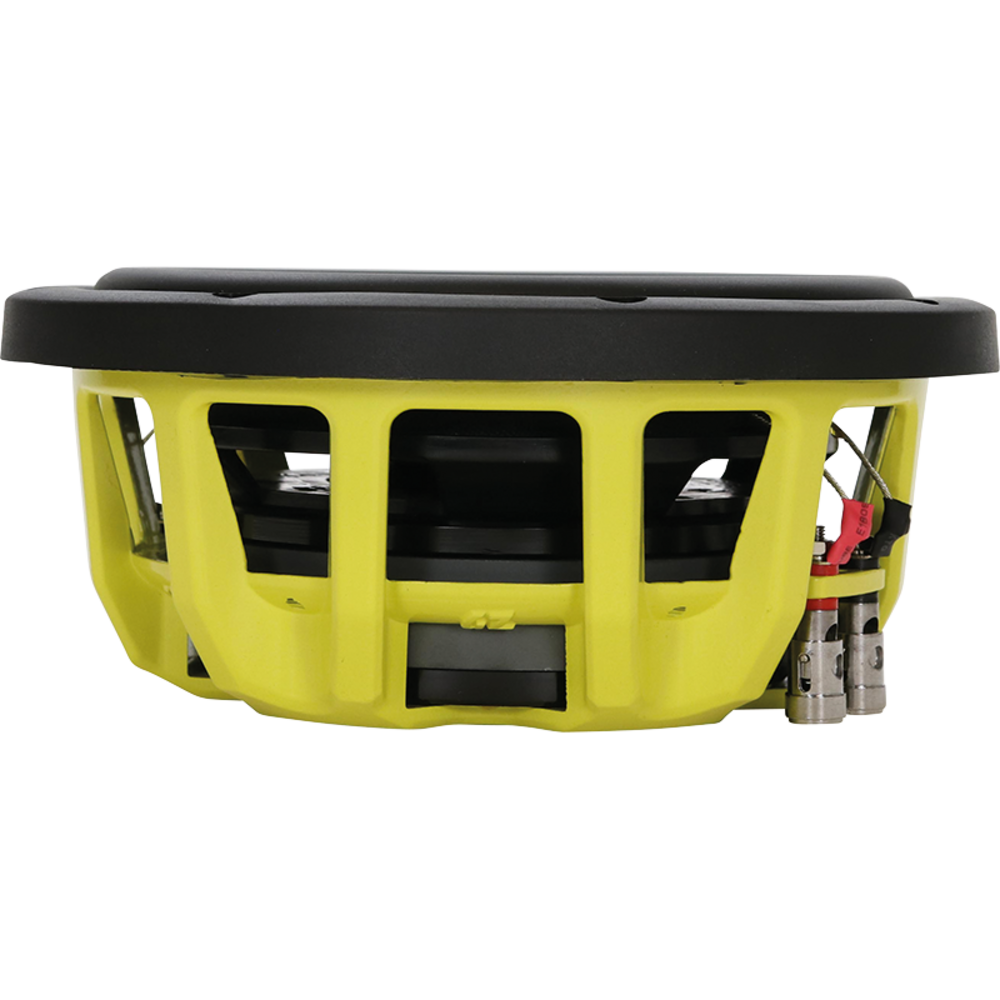

Solid aluminum cast basket
50 mm / 2″ copper voice coil
4-layer copper voice coil
Push terminal
Model High-Quality Flat SPL Subwoofer
Diameter 20 cm / 8″
Power handling (RMS/SPL) 500 / 800 Watts
Impedance 2x 2 Ohms
Efficiency 83 dB
Power recommendation 350 – 800 Watts
Voice coil 63 mm / 2.5″ Copper
Cone Sandwich paper
Max. Excursion (Xmax) 24 mm / 0.94″
Mounting Ø 187 mm / 7.36″
Mounting depth 80 mm / 3.15″
Resonance frequency (Fs) 31.5 Hz
Overall quality (Qts) 0.41
Equiv. air volume (Vas) 14.2 L / 0.50 ft³
