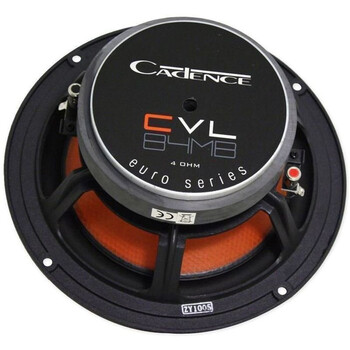

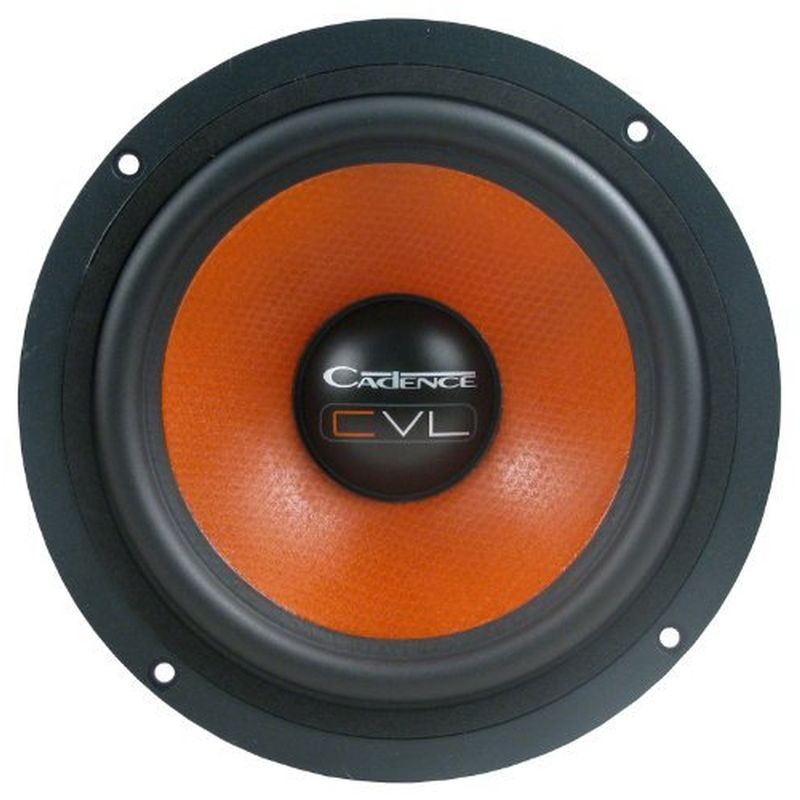

8" Mid-Bass Driver
Specifications
RMS Power Handling: 150 Watts
PEAK Power Handling: 300 Watts
Frequency Response: 102Hz - 10kHz
SPL @ 1w/1m: 100dB
System Impedance: 4 Ohm
Structure Weight: 80 oz
TS Parameters
REVC: 3 Ohm
FO: 43.725 Hz
SD: 21.350 mM
KRM: 402.474u Ohm
ERM: 0.908
EXM: 0.621
VAS: 1.395 m Ft
CMS: 6.105 mm/D
MMD: 19.908m kg
MMS: 21.702g
BL: 7.222 T
QMS: 10.049
QES: 0.343
QTS: 0.332
NO: 0.931%
Features
• Application: Mid-Bass
• Basket Type: Cast Aluminum
• Dust Cap: Plastic
• Surround Style: Butyl Rubber
• 1,5" High Power Voice Coil
