1000 Watts SPL

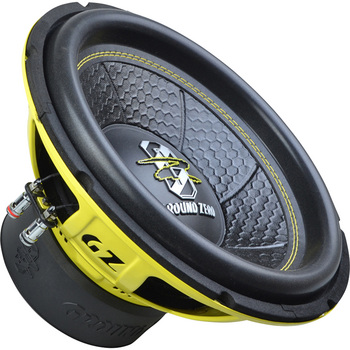

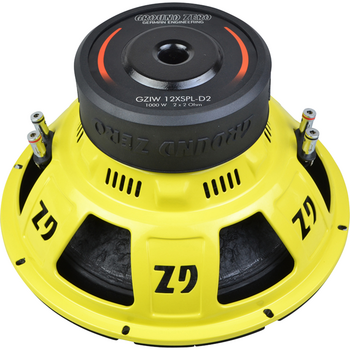

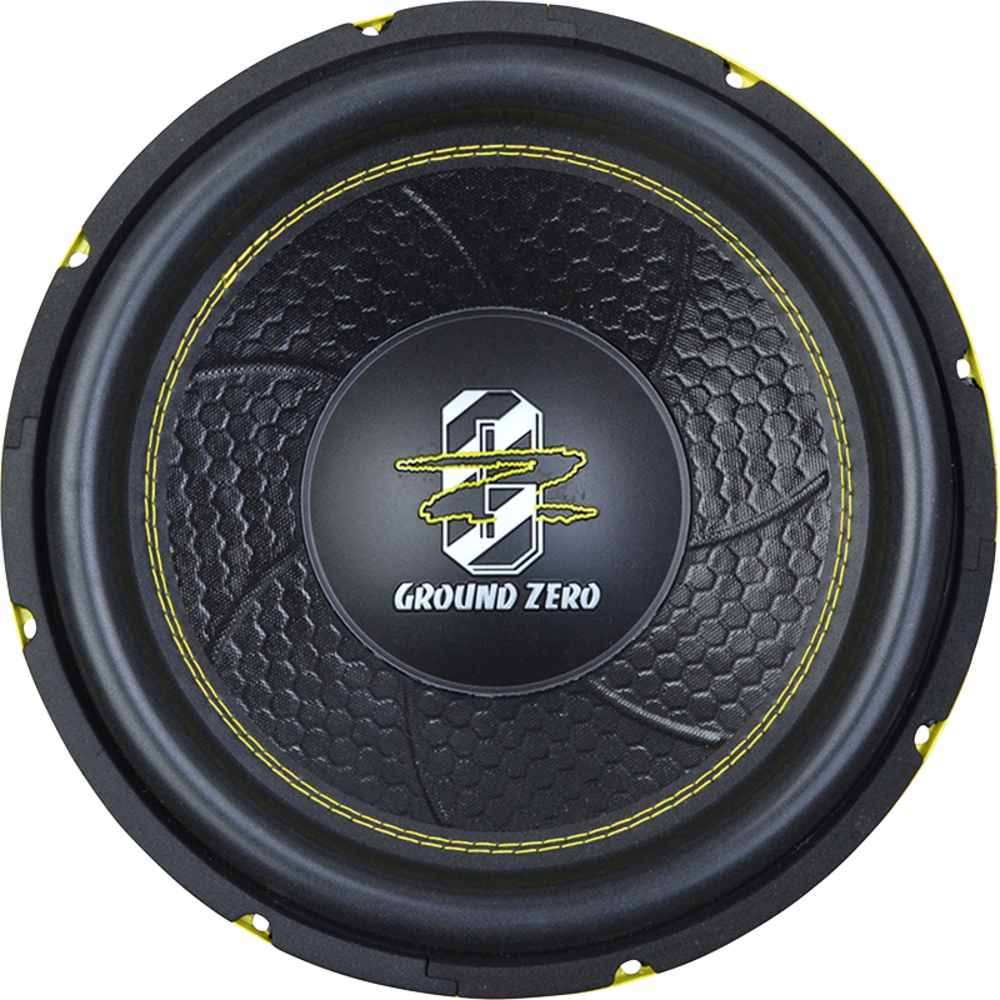

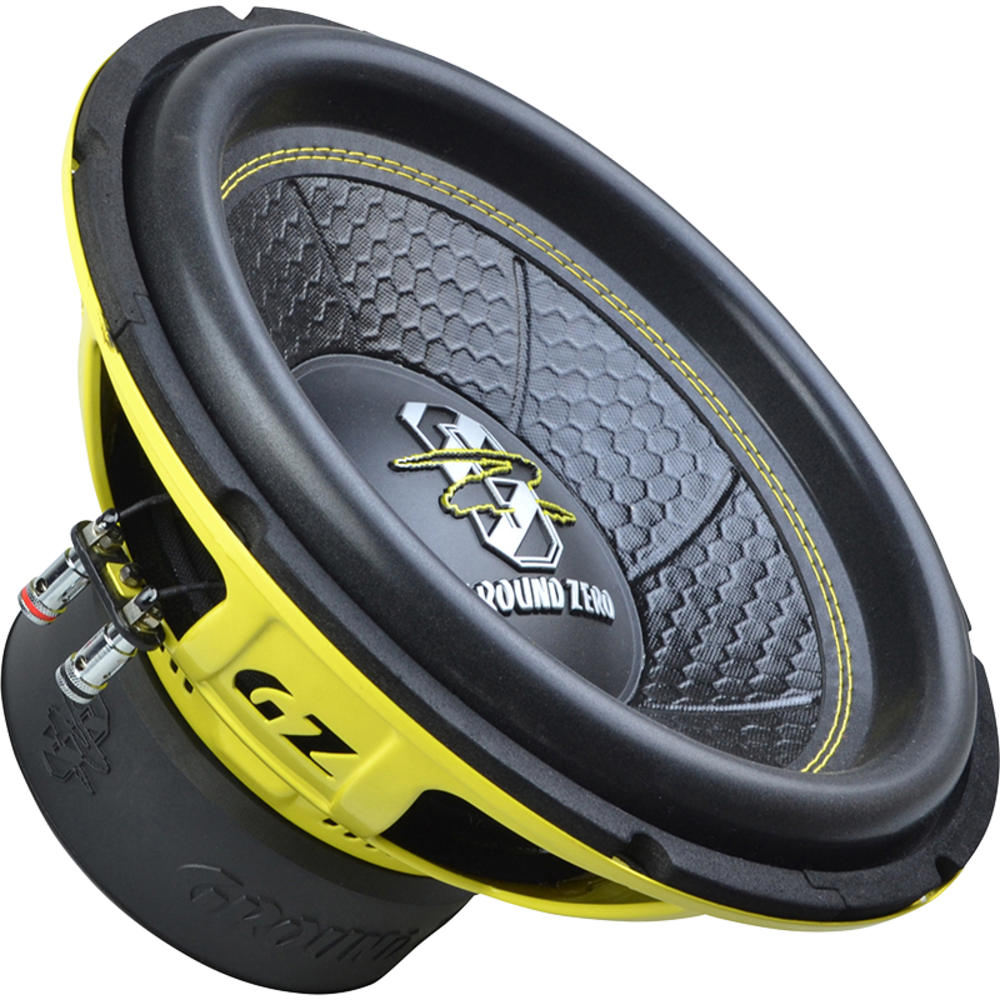

12″ high quality SPL subwoofer with reinforced paper cone
12″ SPL subwoofer
Klippel® optimized
Reinforced paper cone with 3D honeycomb structure
Long stroke compound surround
Resonance free GZ steel basket
63 mm / 2.5″ copper voice coil
2-layer Polycot-Conex spider
IMPP dust cap with 3D structure logo
Model
High-Quality SPL subwoofer
Diameter
30 cm / 12"
Power Handling (RMS/SPL.)
600 / 1000 Watts
Impedance
2x 2 Ohms
Power Recommendation
500 – 1000 Watts
Voice Coil
63 mm / 2.5" Copper
Membran Layout
Reinforced paper with honeycomb structure
Max. Excursion (Xmax)
34 mm / 1.34"
Mounting Ø
285 mm / 11.22"
Mounting Depth
162 mm / 6.38"
Resonance Frequency (Fs)
32.5 Hz
Overall Qaulity (Qts)
0.73
Equiv. Air Volume (Vas)
40.4 L / 1.43 cu.ft.
