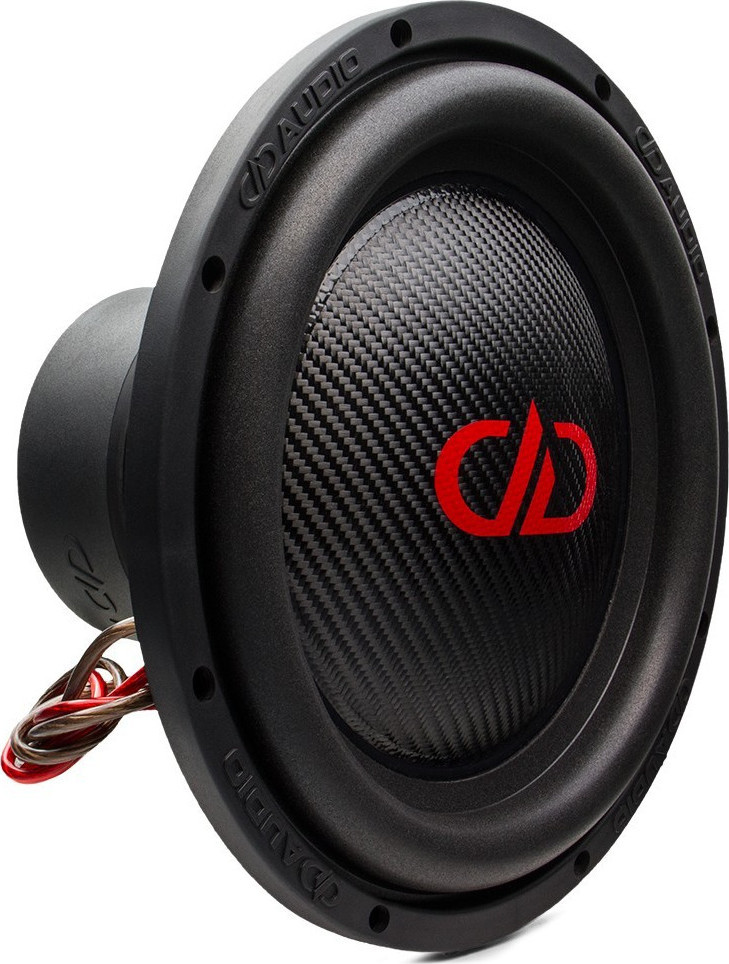

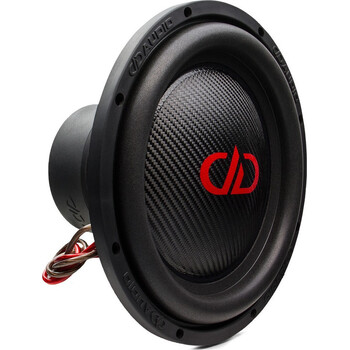

DIGITAL DESIGNS 1512 D2-D4
| MODEL | 1506 (ESP) | 1508D | 1510D | 1512D |
| Driver Size | 6.5" | 8" | 10" | 12" |
| Watts RMS | 300 - 600 | 300 - 600 | 300 - 600 | 300 - 600 |
| Peak Power | 2400 | 2400 | 2400 | 2400 |
| VCD | 2 | 2 | 2 | 2 |
| Impedance | D2 / D4 | D2 / D4 | D2 / D4 | D2 / D4 |
| Piston Dia - in | 5.5 | 6 1/2 | 8.5 | 10 |
| Fs - Hz | 47.78 | 43.74 | 37.68 | 41.72 |
| Qms | 5.152 | 7.1 | 6.826 | 6.81 |
| Qes | 0.864 | 1.02 | 0.988 | 1.4 |
| Qts | 0.740 | 0.89 | 0.863 | 1.1 |
| Vas - liters | 2.398 | 6.35 | 19.1 | 21.81 |
| Xmech - mm | 48 | 31.6 | 48 | 23 |
| Xmax - mm | 10 | 10 | 10 | 10 |
| Frame OD - in | 7 7/16 | 8 1/4 | 10 5/8 | 12 1/4 |
| Frame OD w/Gasket - in | 7 9/16 | 8 1/2 | 10 13/16 | 12 1/2 |
| Mounting Diameter - in | 6 5/16 | 7 1/8 | 9 1/8 | 10 15/16 |
| Mounting Depth - in | 6 | 5 1/2 | 5 3/4 | 6 5/16 |
| Motor Diameter - in | 6 | 6 | 6 | 6 |
| Motor Depth - in | 2 13/16 | 2 13/16 | 2 13/16 | 2 13/16 |
| Woofer Displacement - cu ft | 0.05 | 0.06 | 0.06 | 0.08 |
| Sealed Enclosure - cu ft | N/A | N/A | N/A | N/A |
| Ported Enclosure - cu ft | 0.25 - 0.75 | 0.75 - 1.25 | 1.25 - 1.5 | 1.75 - 2.75 |
| Shipping Weight - lbs | 17.6 | 16 | 16 | 18 |
Brand:
Digital Designs
