Description

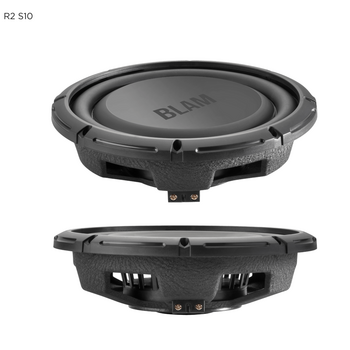

250 mm (10’’) extra-slim subwoofer
Mounting depth 66 mm (2.6’’)
Maximum power 300 W / Nominal power 150 W
Frequency response: 35 Hz à 500 Hz
Sensitivity: 86.2 dB
Impedance 4 Ω
Composition
Steel basket
Injected polypropylene cone
Butyl rubber surround
Long life “conex” damper
50 mm (2’’) voice coil on aluminium former
126 mm x 15 mm (5’’ x 0.6’’) motor assembly
Extended T yoke
Optimized for use in a 10L to 40L closed enclosure
Supplied Accessories:
Mounting screw
User manual
Recommended sealed enclosure:
Internal Volume Vb F -3dB Boost
10L 49 Hz 5,0 dB at 75 Hz
20L 41 Hz 3,4 dB at 65 Hz
30L 38 Hz 2,7 dB at 61 Hz
