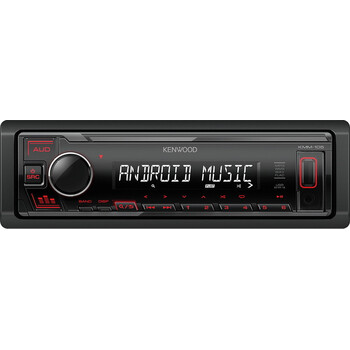

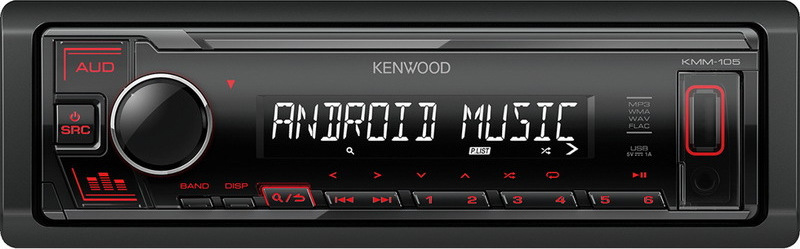

Kenwood KMM-105RY. Digital Media Receiver with Front USB & AUX Input. με κόκκινο φωτισμό νεο μοντέλο !!
General Features
DIN Size | 1 DIN |
Detachable Faceplate | Yes |
Key Illumination | Red LED |
Rotary Encoder & Control Knob | Yes |
Dual Accent Key | Audio control & Easy EQ control |
Back-up Memory | Radio presets |
Attenuator with Smooth Volume Return | Yes |
Touch Sensor Tone | Yes |
Digital Clock (24H) | Yes |
Clock display when power-off | default off |
All-off Select (20/40/60 minutes) | Yes |
Built-in Connector | Mitsumi, 16 pin |
ISO connector | Yes, Mitsumi to ISO cable |
USB interface x 1 | Yes, (Front) |
Firmware upgreadable | Yes |
Mechless receiver | Yes |
Short body | Yes |
Display Features
Display Type | Liquid Crystal Display (LCD) |
Display Layout | 13 Segments x 13 Digit |
Vertical Aligment Liquid Crystal Display | Yes |
Display Illumination | White (LED) |
Dimmer Control | Manual / Set by Timer |
Brightness control | 0 - 31 steps |
Demo Mode | Yes |
Menu text in selectable language | English(default) / Spanish / French / Russian |
Cosmetics features
Dress plate | Piano Black |
Preset key finish | Piano Black |
Escutcheon finish | Black Injection |
Volume & operation knob or wheel | Piano black with chrome finished ring |
Triangle Illumination | Red LED |
Front terminals dust cover | Yes |
Key illumination | Red LED |
Illuminated front USB port | Red LED |
Brightness Control (Key) | 0 - 31 step |
Dimmer Control (Key) | Manual / Set by Timer |
Brightness zone concept | 2 zone brightness control |
Tuner Features
Station Select | Manual / Preset |
FM Reception | Yes |
AM (MW/LW) Reception | Yes |
Tuner Presets (FM/AM) | 24 Presets (18FM / 6AM) |
Preset memory w/o back-up power | Yes |
Mixed preset memory (FM & AM) | 6 presets |
Up/Down Seek/Scan | Yes |
Automatic Memory Entry (AME) | Yes |
FM Stereo / Mono Selector | Yes |
Radio Data System | Yes |
Radio Text Plus | Yes |
Traffic Information | Yes |
Local search | Yes |
AF Regional | Selectable: AF/AF Reg/OFF |
Auto TP search | Yes |
Enhanced Other Networks Function (EON) | Yes |
Program Type Function (PTY) | Yes |
USB Features
USB terminal | Yes, Front with dust cover |
USB Type | 2.0 High speed |
Kenwood Music Control App for Android | Yes, (with Android OS 4.1 ~ 7.0 ) |
MP3, WMA, WAV, FLAC playback | Yes |
Repeat/Scan/Random search | Yes |
Repeat / Random Play | Yes |
Direct search | Yes |
Resume play | Yes |
Time code display | Yes |
1A Charge Capability for Smartphone. | Yes |
Audio Features
Maximum Output Power | 50W x 4 |
MOSFET Power IC | Yes |
Auxiliary Type | Mini-jack, front panel |
Pre-out | 1 RCA |
Pre-out Output Level | 2.5V |
Preout Rear / Subwoofer Switchable | Yes |
Subwoofer Reference Level Adj. | Yes |
Tone Control / Easy EQ | 3-Band, 8 Presets |
Balance/Fader/Loudness Control | Yes |
Bass Boost Circuit | Off/+1/+2/+3/+4/+5 |
Att.(-20dB) with smooth Volume Return | Yes |
Parametric Equalizer + Presets | 3-Bands Parametric Equalizer with 8 Presets. |
Low-pass Filter | Yes |
Speaker Size Control | Yes, Off / 5" or 4" / 6*9" or 6" / OEM |
Kenwood Sound Reconstruction | Yes |
Drive EQ | Yes |
Connectivity
Front USB & AUX Input | Yes |
OEM Wired Remote Control ready | Yes |
DC-Cord | Mitsumi to ISO |
Power Control (P.CON) wire | Yes |
Amplifier pre-out | 1 RCA: Rear/Subwoofer (selectable) |
FM Antenna Input | JASO connector |
Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
FM Usable Sensitivity | 0.71μV/75ohm (S/N 30dBf) |
FM Quieting Sensitivity | 2μV/75ohm (S/N 46dBf) |
FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
FM Signal to noise ratio (Mono) | 64dB |
FM Stereo Separation (1kHz) | 40dB |
MW range: 531kHz - 1611kHz (9kHz step) | Yes |
MW Usable Sensitivity | 28.2μV |
LW range: 153kHz - 279kHz (9kHz step) | Yes |
LW Usable Sensitivity | 50μV |
Codec Specs
MP3 Format | MPEG 1/2 Audio Layer 3-Files |
WMA Format | in accordance with Windows Media Audio |
WAV Format | RIFF waveform Audio Format (only for LinearPCM) |
FLAC Format | FLAC files (up to 96kHz/24bit) |
USB Specifications
USB Version compatibility | USB 1.1/2.0 full speed |
File System | FAT 32/16/12 |
Maximum Supply current | 1500mA |
D/A Converter | 24bit |
MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
WMA Decode | Compliant with Windows Media Audio |
WAV Decode | Linear - PCM Files |
flac Decode | FLAC files up to 48kHz/16bit |
Audio Specifications
Maximum Power | 50W x 4 |
Output Power (DIN45324,+B=14.4v) | 22W x 4 |
Preout Level | 2500mV / 10kOhm, |
Preout Impedance | ≤ 600Ohm |
Speaker Impedance | 4Ohm ~ 8Ohm |
AUX Frequency Response | 20Hz ~ 20kHz (±1dB) |
AUX Maximum Input Voltage | 1000mV |
AUX Input Impedance | 30kOhm |
Bass Tone Control | 100Hz ±8dB |
Middle Tone Control | 1kHz ±8dB |
Treble Tone Control | 12.5kHz ±8dB |
Low Pass Filter Frequency (Hz) | Through/85/120/160Hz |
Subwoofer Level (dB) | -15 dB to +15dB |
Accessories
Release keys | 2 pieces |
Escutcheon | Yes |
Installation Sleeve | Yes |
DC cord (Mitsumi to ISO) | 15 cm |
General Specifications
Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
Maximum Current Consumption | 10A |
Dark Current Consumption | Below 1mA |
Dimensions (WxHxD) | 182 x 53 x 100mm |
Weight | 600 gr. |
Operation Temperature Range | -10°C ~ 60°C |
Instruction Manuals | Multi-language quick Guide |
