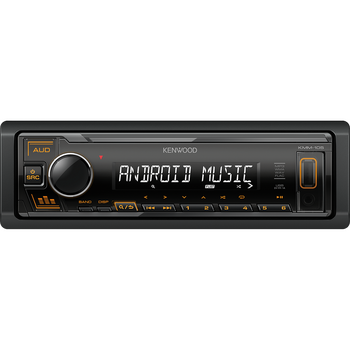

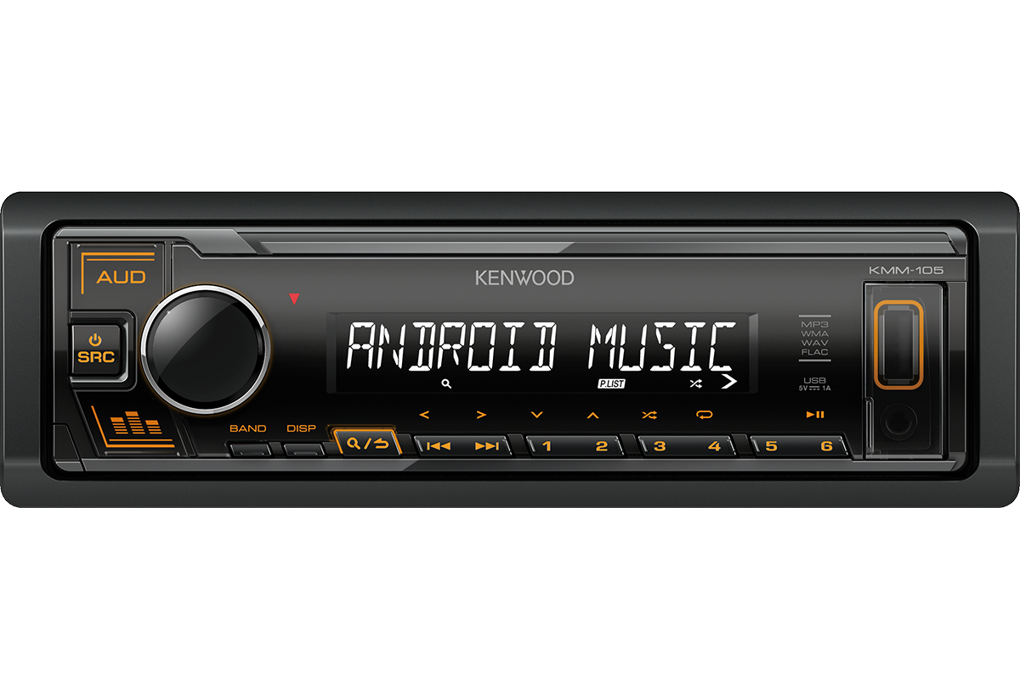

KENWOOD KMM-105AY Digital Media Receiver with Front USB & AUX Input. με πορτοκαλί φωτισμό νεο μοντέλο !
Key Features
| Short body media receiver |
| 13 Digits vertical alignment LCD display. |
| Amber key & white display illumination. |
| Dual Accent Key. |
| FM (RDS) / AM (MW/LW) tuner (24presets). |
| Illuminated front USB with dust cover (1,0A). |
| MP3/WMA/WAV/FLAC playback. |
| Android music playback. |
| 3-band EQ built-in. |
| 1 RCA (rear/sub switchable) preout (2,5V). |
General Features
| DIN Size | 1 DIN |
| Detachable Faceplate | Yes |
| Key Illumination | Amber LED |
| Rotary Encoder & Control Knob | Yes |
| Dual Accent Key | Audio control & Easy EQ control |
| Back-up Memory | Radio presets |
| Attenuator with Smooth Volume Return | Yes |
| Touch Sensor Tone | Yes |
| Digital Clock (24H) | Yes |
| Clock display when power-off | default off |
| All-off Select (20/40/60 minutes) | Yes |
| Built-in Connector | Mitsumi, 16 pin |
| ISO connector | Yes, Mitsumi to ISO cable |
| USB interface x 1 | Yes, (Front) |
| Firmware upgreadable | Yes |
| Mechless receiver | Yes |
| Short body | Yes |
Display Features
| Display Type | Liquid Crystal Display (LCD) |
| Display Layout | 13 Segments x 13 Digit |
| Vertical Aligment Liquid Crystal Display | Yes |
| Display Illumination | White (LED) |
| Dimmer Control | Manual / Set by Timer |
| Brightness control | 0 - 31 steps |
| Demo Mode | Yes |
| Menu text in selectable language | English(default) / Spanish / French / Russian |
Cosmetics features
| Dress plate | Piano Black |
| Preset key finish | Piano Black |
| Escutcheon finish | Black Injection |
| Volume & operation knob or wheel | Piano black with chrome finished ring |
| Triangle Illumination | Red LED |
| Front terminals dust cover | Yes |
| Key illumination | Amber LED |
| Illuminated front USB port | Amber LED |
| Brightness Control (Key) | 0 - 31 step |
| Dimmer Control (Key) | Manual / Set by Timer |
| Brightness zone concept | 2 zone brightness control |
Tuner Features
| Station Select | Manual / Preset |
| FM Reception | Yes |
| AM (MW/LW) Reception | Yes |
| Tuner Presets (FM/AM) | 24 Presets (18FM / 6AM) |
| Preset memory w/o back-up power | Yes |
| Mixed preset memory (FM & AM) | 6 presets |
| Up/Down Seek/Scan | Yes |
| Automatic Memory Entry (AME) | Yes |
| FM Stereo / Mono Selector | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| AF Regional | Selectable: AF/AF Reg/OFF |
| Auto TP search | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
USB Features
| USB terminal | Yes, Front with dust cover |
| USB Type | 2.0 High speed |
| Kenwood Music Control App for Android | Yes, (with Android OS 4.1 ~ 7.0 ) |
| MP3, WMA, WAV, FLAC playback | Yes |
| Repeat/Scan/Random search | Yes |
| Repeat / Random Play | Yes |
| Direct search | Yes |
| Resume play | Yes |
| Time code display | Yes |
| 1A Charge Capability for Smartphone. | Yes |
Audio Features
| Maximum Output Power | 50W x 4 |
| MOSFET Power IC | Yes |
| Auxiliary Type | Mini-jack, front panel |
| Pre-out | 1 RCA |
| Pre-out Output Level | 2.5V |
| Preout Rear / Subwoofer Switchable | Yes |
| Subwoofer Reference Level Adj. | Yes |
| Tone Control / Easy EQ | 3-Band, 8 Presets |
| Balance/Fader/Loudness Control | Yes |
| Bass Boost Circuit | Off/+1/+2/+3/+4/+5 |
| Att.(-20dB) with smooth Volume Return | Yes |
| Parametric Equalizer + Presets | 3-Bands Parametric Equalizer with 8 Presets. |
| Low-pass Filter | Yes |
| Speaker Size Control | Yes, Off / 5" or 4" / 6*9" or 6" / OEM |
| Kenwood Sound Reconstruction | Yes |
| Drive EQ | Yes |

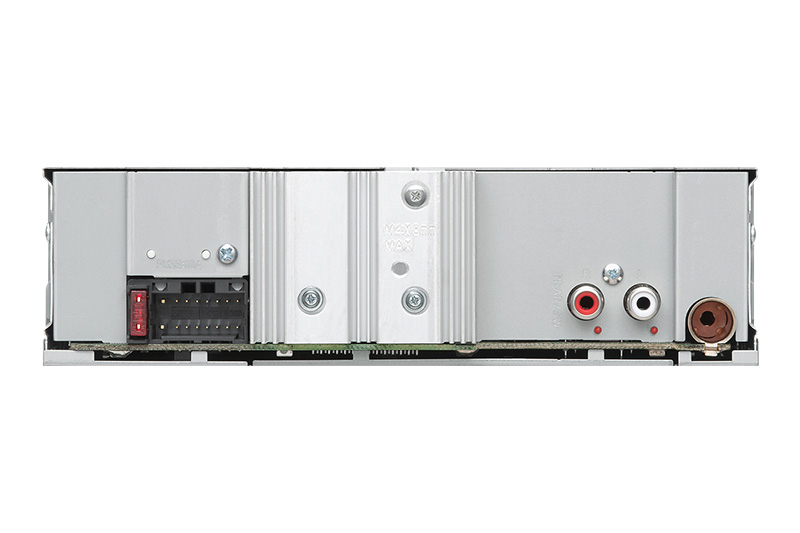

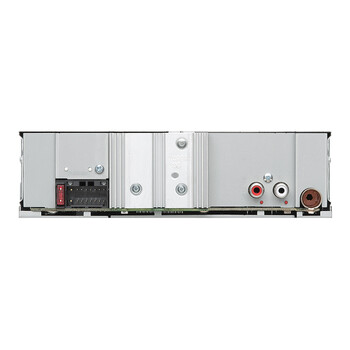

Connectivity
| Front USB & AUX Input | Yes |
| OEM Wired Remote Control ready | Yes |
| DC-Cord | Mitsumi to ISO |
| Power Control (P.CON) wire | Yes |
| Amplifier pre-out | 1 RCA: Rear/Subwoofer (selectable) |
| FM Antenna Input | JASO connector |
Tuner Specifications
| FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 0.71μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity | 2μV/75ohm (S/N 46dBf) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 64dB |
| FM Stereo Separation (1kHz) | 40dB |
| MW range: 531kHz - 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 28.2μV |
| LW range: 153kHz - 279kHz (9kHz step) | Yes |
| LW Usable Sensitivity | 50μV |
Codec Specs
| MP3 Format | MPEG 1/2 Audio Layer 3-Files |
| WMA Format | in accordance with Windows Media Audio |
| WAV Format | RIFF waveform Audio Format (only for LinearPCM) |
| FLAC Format | FLAC files (up to 96kHz/24bit) |
USB Specifications
| USB Version compatibility | USB 1.1/2.0 full speed |
| File System | FAT 32/16/12 |
| Maximum Supply current | 1500mA |
| D/A Converter | 24bit |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| WAV Decode | Linear - PCM Files |
| flac Decode | FLAC files up to 48kHz/16bit |
Audio Specifications
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22W x 4 |
| Preout Level | 2500mV / 10kOhm, |
| Preout Impedance | ≤ 600Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
| AUX Frequency Response | 20Hz ~ 20kHz (±1dB) |
| AUX Maximum Input Voltage | 1000mV |
| AUX Input Impedance | 30kOhm |
| Bass Tone Control | 100Hz ±8dB |
| Middle Tone Control | 1kHz ±8dB |
| Treble Tone Control | 12.5kHz ±8dB |
| Low Pass Filter Frequency (Hz) | Through/85/120/160Hz |
| Subwoofer Level (dB) | -15 dB to +15dB |
Accessories
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord (Mitsumi to ISO) | 15 cm |
General Specifications
| Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption | 10A |
| Dark Current Consumption | Below 1mA |
| Dimensions (WxHxD) | 182 x 53 x 100mm |
| Weight | 600 gr. |
| Operation Temperature Range | -10°C ~ 60°C |
| Instruction Manuals | Multi-language quick Guide |
