Description
BLAM-AUDIO

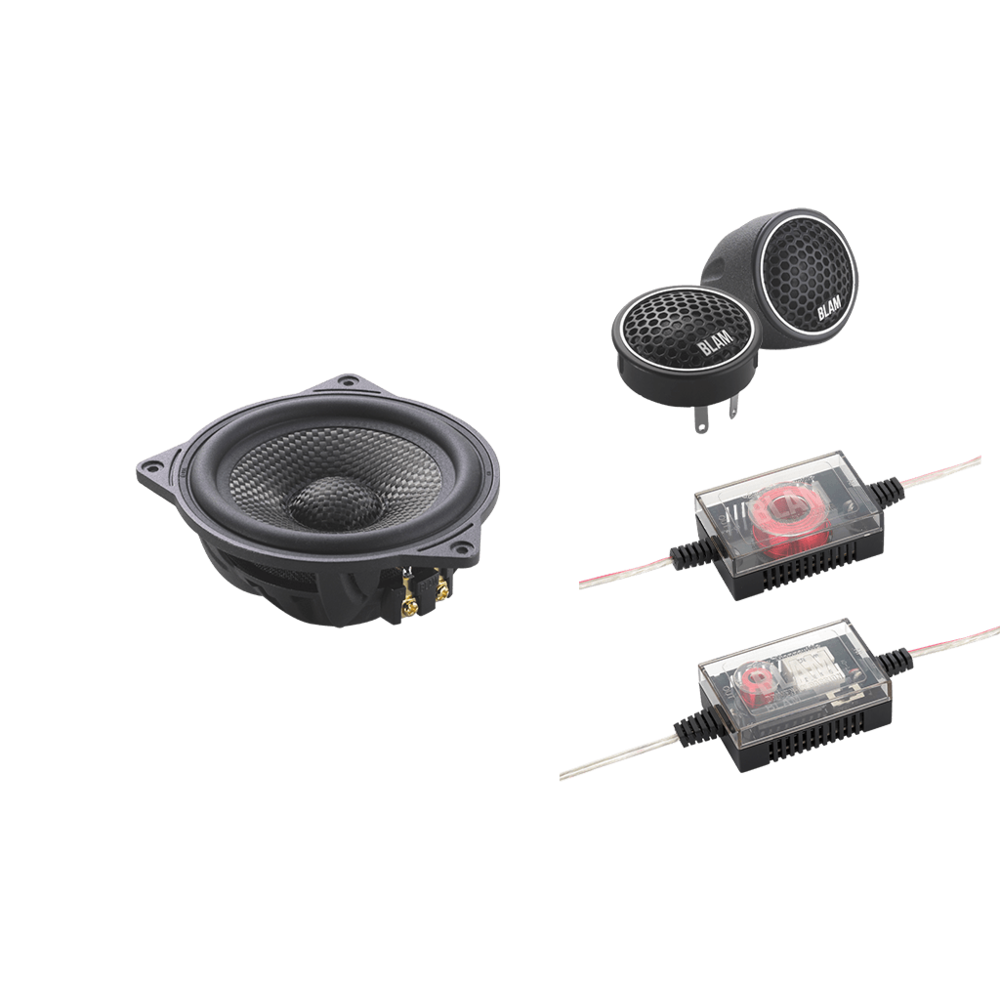

2 WAY COMPONENT SPEAKER SYSTEM
Component system dedicated for Mercedes & BMW (with optional hardness) which includes two 100 mm (4”) midranges, two 20 mm (3/4”) soft dome tweeters and four external crossovers.
Composition
MS 4N 24 HIGH FIDELITY MIDRANGE
• 100 mm (4“) slim midrange
• Max Power 120 W / RMS Power 60 W
• Frequency response 95 Hz – 9 kHz
• Sensitivity 88 dB – Impedance 3 Ω
Die cast aluminum basket – Ultra rigid carbon fiber – butyl surround – Long life « conex » spider – 25 mm voice coil, fiberglass former – High grade neodymium magnet, precision machined pole piece and T yoke.
TS 20 HR HIGH RESOLUTION TWEETER
• 20 mm (3/4’’) textile dome diaphragm
• Frequency response 2.5 kHz – 43 kHz
• Sensitivity 88.3 dB – Impedance 5 Ω
Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling.
BFT01 HIGH QUALITY CROSSOVER
High pass 12 dB/octave crossover
Ajustable tweeter level at +3 dB, 0 dB or -3 dB
BFW01 HIGH QUALITY CROSSOVER
Low pass 6 dB/octave crossover
