Description
Thanks to its very linear frequency response that extends into the extreme high frequencies, the LM80 will reproduce music with an incredible resolution that will drive you to rediscover all your favorite music tracks.
This system includes two 80 mm (3″) midrange driver
80 mm (3″) midrange driver
Max power 100 W – Nominal power 25 W
Frequency response 100 Hz – 25 kHz
Sensibility 87.6 dB – Impedance 3 Ω
Depend upon the cut-off frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition

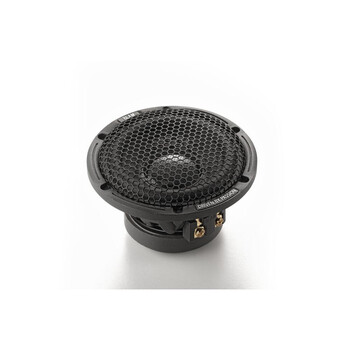

LM80 80 MM (3”) MIDRANGE DRIVER
Max power 100 W – Nominal power 25 W
Frequency response 100 Hz – 25 kHz
Sensibility 87.6 dB – Impedance 3 Ω
Mounting depth 45.5 mm (1.8’’)
Die cast aluminium basket – Epoxy resin and glass fiber cone – Butyl surround – Long-life “Conex” damper – 20 mm (0.8”) voice coil with TIL former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet
Optimized for sealed enclosure volume from 2 L to 30 L
Minimal required cut off frequency: 300 Hz 12 dB/octave
