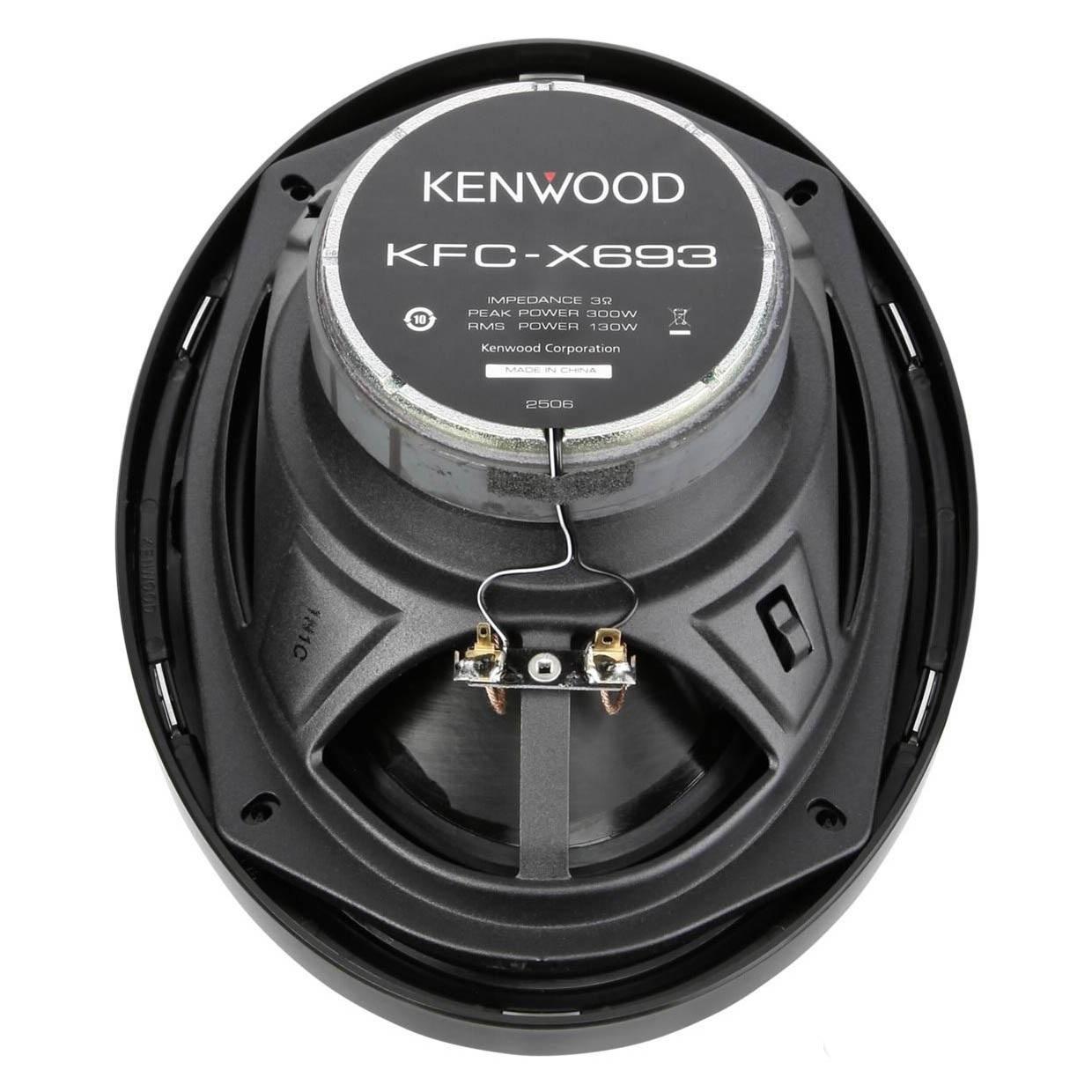

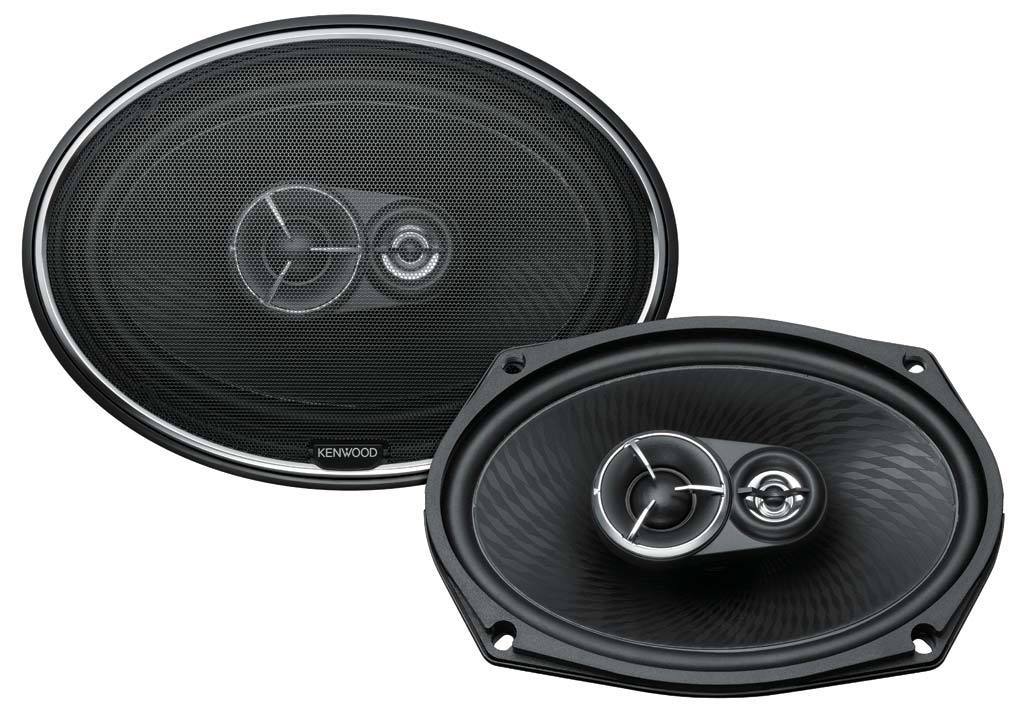

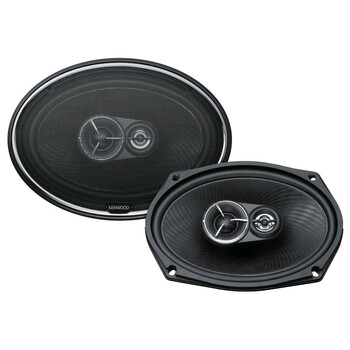

3-way 3-speaker System |
6"x9" Carbon-PP cone with fiber texture |
High performance speaker system |
25mm midrange, 20mm tweeter |
300W Peak input power |
Speaker Features
Speaker System | 3-way 3-speaker System |
Speaker Type | Coaxial |
Peak Input Power | 300W |
Speaker Size | 6"x9" |
Speaker Cone Design | Diamond-Array pattern |
Magnet Type | Ferrit |
Terminals | Slide type |
Speaker/woofer Specifications
Peak Input Power | 300W |
Maximum Input Power | 150W |
RMS power (CEA spec) | 130 W |
Woofer Cone material | Carbon-P.P. cone with fiber texture |
Speaker Basket | Steel |
Speaker Surround | Butyl Rubber |
Sensitivity | 89dB/W/m |
Frequency Response | 50Hz ~ 25000Hz |
Speaker Impedance | 4Ω |
Dimensions (W x H x D) | 266.4 x 193.4 x 113.2mm |
Mounting Depth | 85mm |
Mouting Hole Diameter | 222mm x 150mm |
Speaker Weight with Grille (pc.) | 1770gr |
Speaker Weight w/o Grille (pc.) | 1600gr |
Gross Weight | 4000gr |
Weight of Magnet | 504gr |
Midrange Speaker Specifications
Cone Size | 25mm |
Cone Type | Soft dome |
Magnet Type | Neodymium |
Tweeter Specifications
Cone Size | 20mm |
Cone Material | P.E.I. Balanced Dome |
Magnet Type | Neodymium |
Accessories
Butyl Rubber | |
Screws (Parker-type) | Ø 4 x 40mm, 8 pieces |
Screws (M-type) | M4 x 7mm, 8 pieces |
Washer | Ø 4, 8 pieces |
Washer | Ø 4, 8 pieces |
Clip nut (L) | 8 pieces |
Speed nut | φ 4, 8 pieces |
Grille | Yes |
Grill holder | 2 pieces |
Speaker cable | 0.3m |
