Description

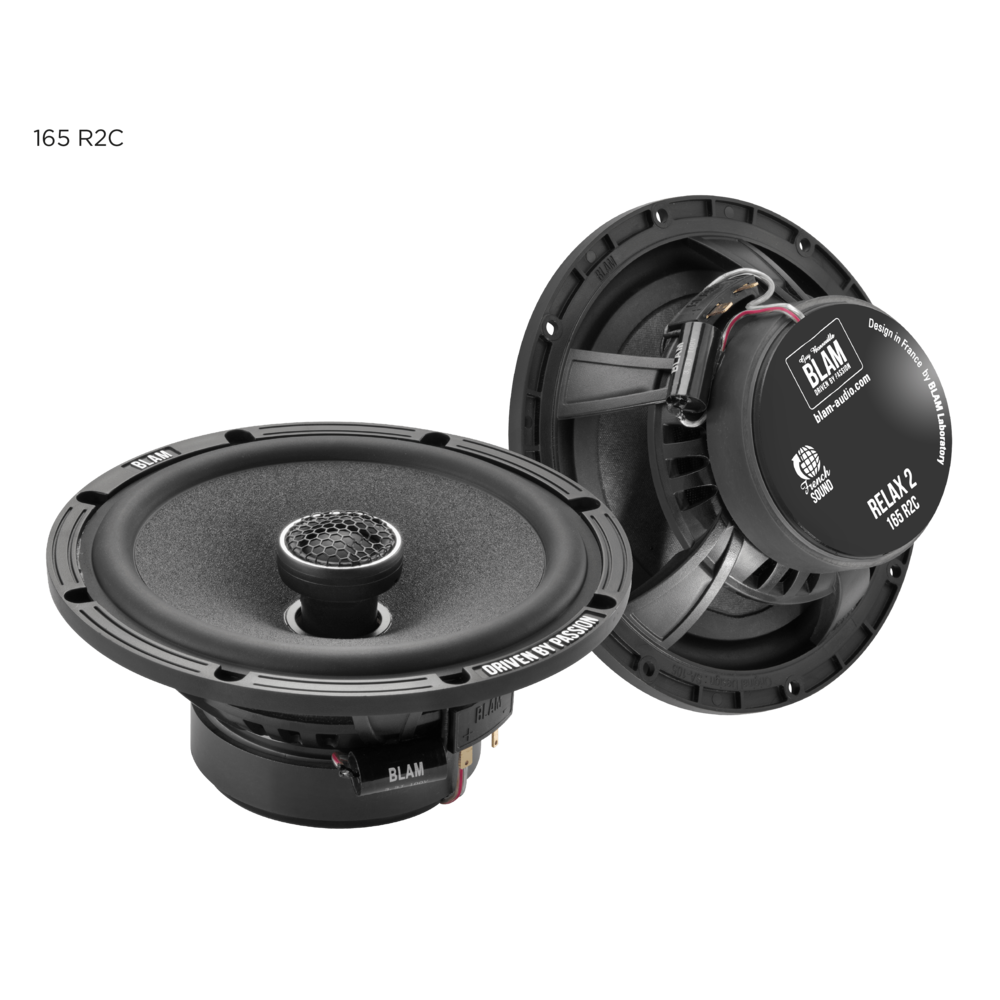

This system includes two 165 mm (6.5”) woofers, two coaxial 20 mm (3/4”) soft dome tweeters and two integrated 6 dB/octave crossovers.
High sensitivity 2-way coaxial system
165 mm (6.5’’) woofer
Max power 150 W – Nominal power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω
Composition
2 Woofers :
Composite basket reinforced in glass fiber
High quality treated cellulose pulp membrane
Butyl rubber surround
Long life “Conex” damper
25 mm (1’’) voice coil with Kapton former
85 mm x 17 mm (3.3’’ x 0.7’’) motor assembly (Y30)
Thick magnetic circuit (5 mm)
2 Coaxial tweeters
20 mm (3/4’’) high quality soft dome coaxial tweeter
N38 neodymium motor
Integrated crossover 6 dB/octave
