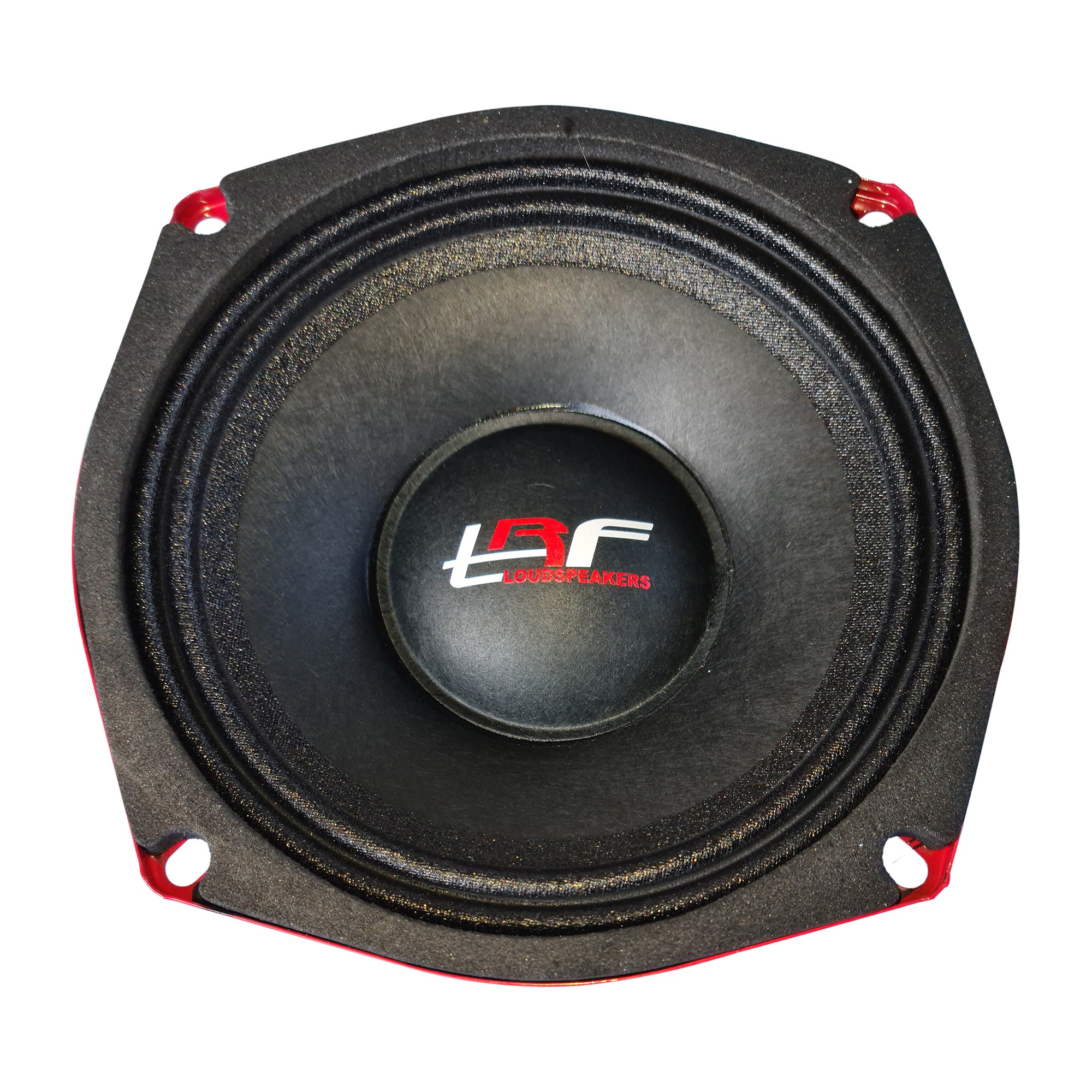

MODEL: TRF 5 MR180ND
Nominal diameter:5inch
Nominal impedance:4Ω
Power RMS:100W
Power PROGRAM RMS :180W
Power MAX:200W
Sensitivity (1w/1m):95
Frequency range:150-13500 Hz
Voice coil diameter:Φ38.55 mm
Magnet dimension:Φ75*6mmX1PCS
Vas:2.35l
Fs:149 Hz
Qms: 4.39
Qes: 0.56
Qts: 0.5
Sd: 96.7cm2
Mmms:6.44g
Bl:5.84Tm
Re (D.C.):3.2Ω
Basket:Die cast IRON
Cone and dust cap:Paper
Surround:Cloth
Voice coil wire:CCAR
Voice coil bobbin:KSV
Magnet: ND
Over all diameter:Φ151mm
Bolt circle diameter:4holes-Φ5mm - Φ135.5 mm
Cut out diameter:Φ121 mm
Depth:58 mm
Net weight: 0.800 kg
Xmax:± 3mm
