model GZFC 130.2
nominal diameter 13 cm / 5.25“
2-way component loudspeaker system
impedance 4 Ohm / ohms
frequency response 60 Hz – 20 kHz
cross frequency 5000 Hz (12 dB/Okt. / oct.)

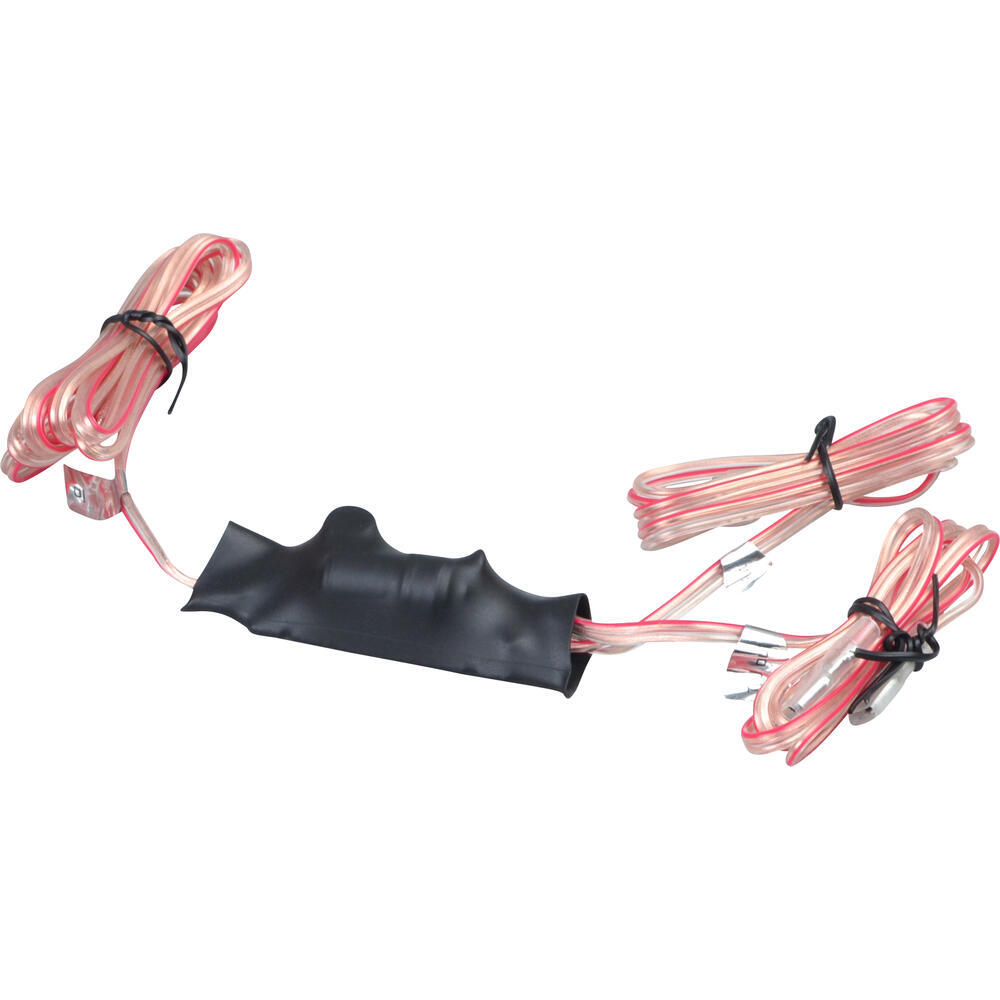

high pass filter
power handling (RMS) 90 Watt
power handling (max) 140 Watt
efficiency (SPL) 90 dB
Xmax 7 mm / 0.28”
dimensions / tweeter

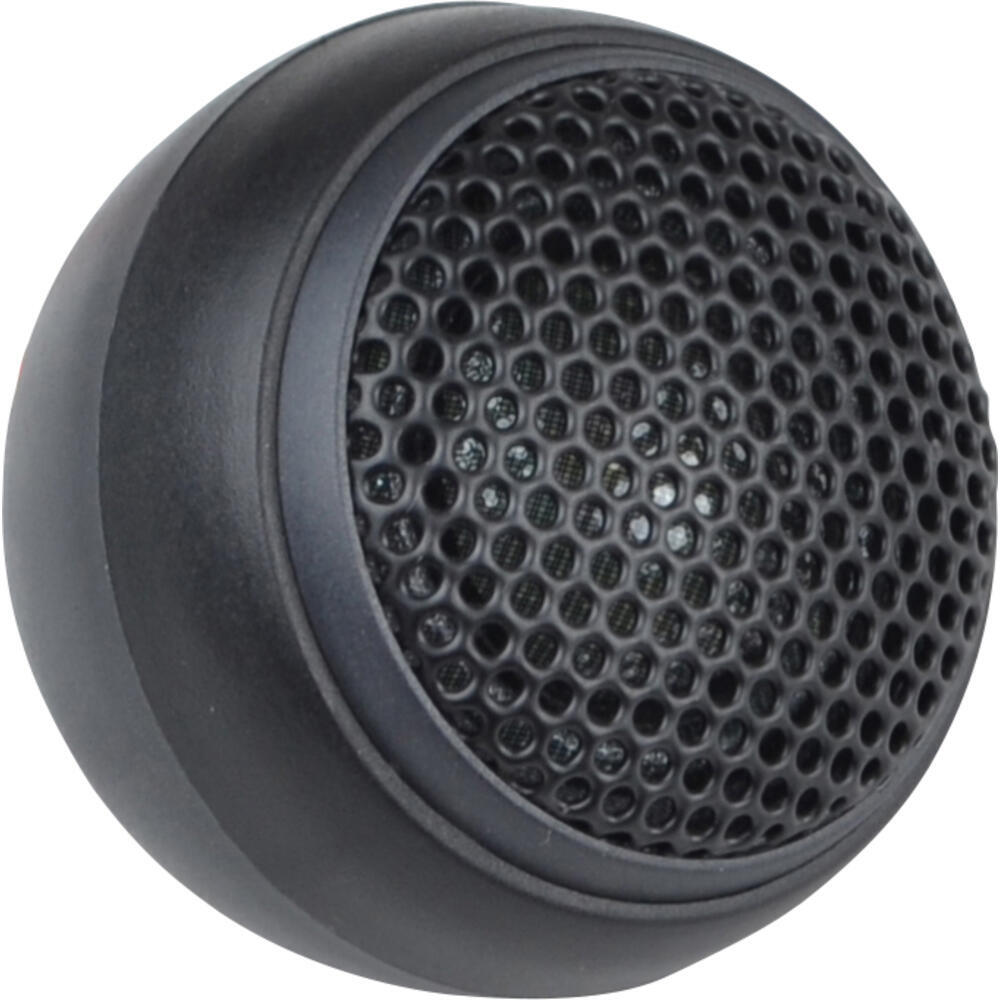

GZFT 19
midwoofer

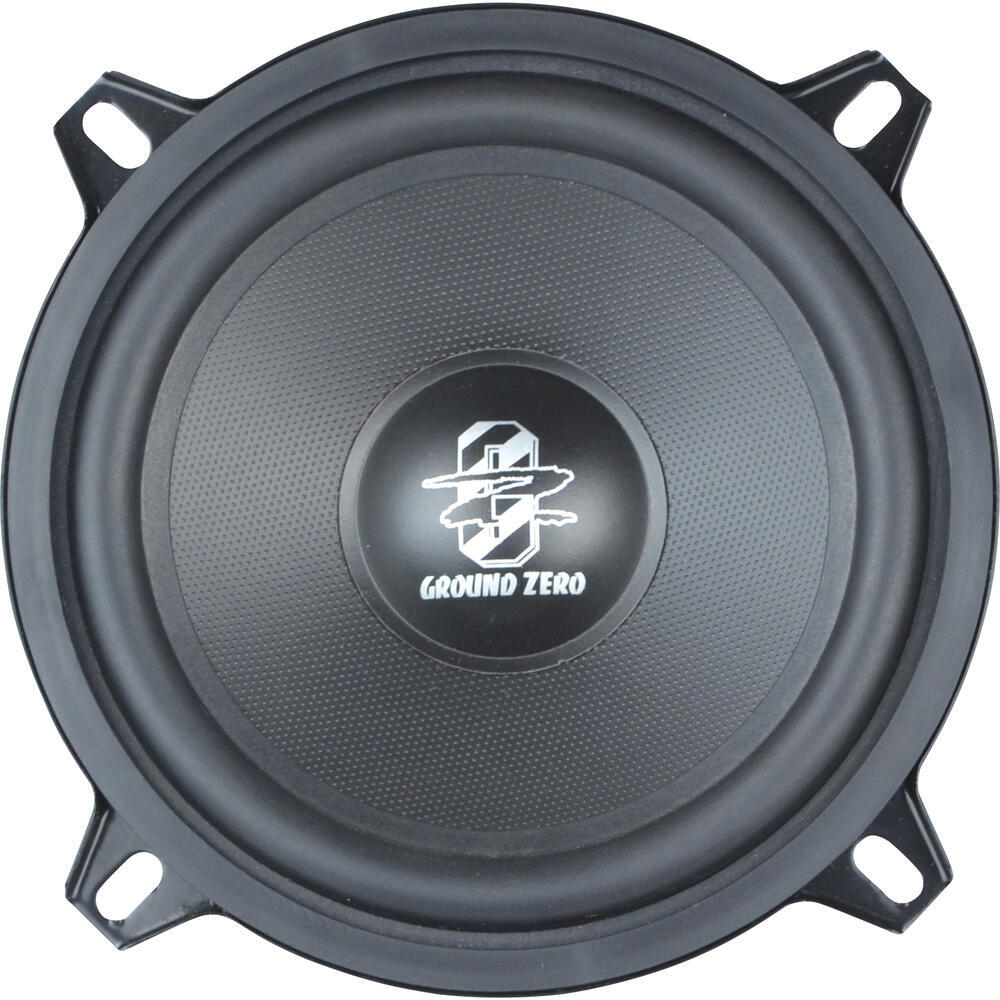

GZFK 130
midwoofer
diameter (nominal) 19 mm / 0.75” 130 mm / 5.25”
mounting cutout 41 mm / 1.61” 114 mm / 4.49”
mounting depth 18 mm / 0.71” 50 mm / 1.97”
