Woofer |
4"/100mm |
---|---|
Tweeter |
1"/25mm |
Power RMS |
60W |
Power MAX |
100W |
Impedance |
4 Ohm |
Freq.range |
65 – 22 000 Hz |
Sensitivity |
86 dB |
Outer diameter |
102mm |
Cone material |
Coated paper cone |
Magnet size |
80mm |
Mounting depth |
57mm |
Mounting hole |
97mm |

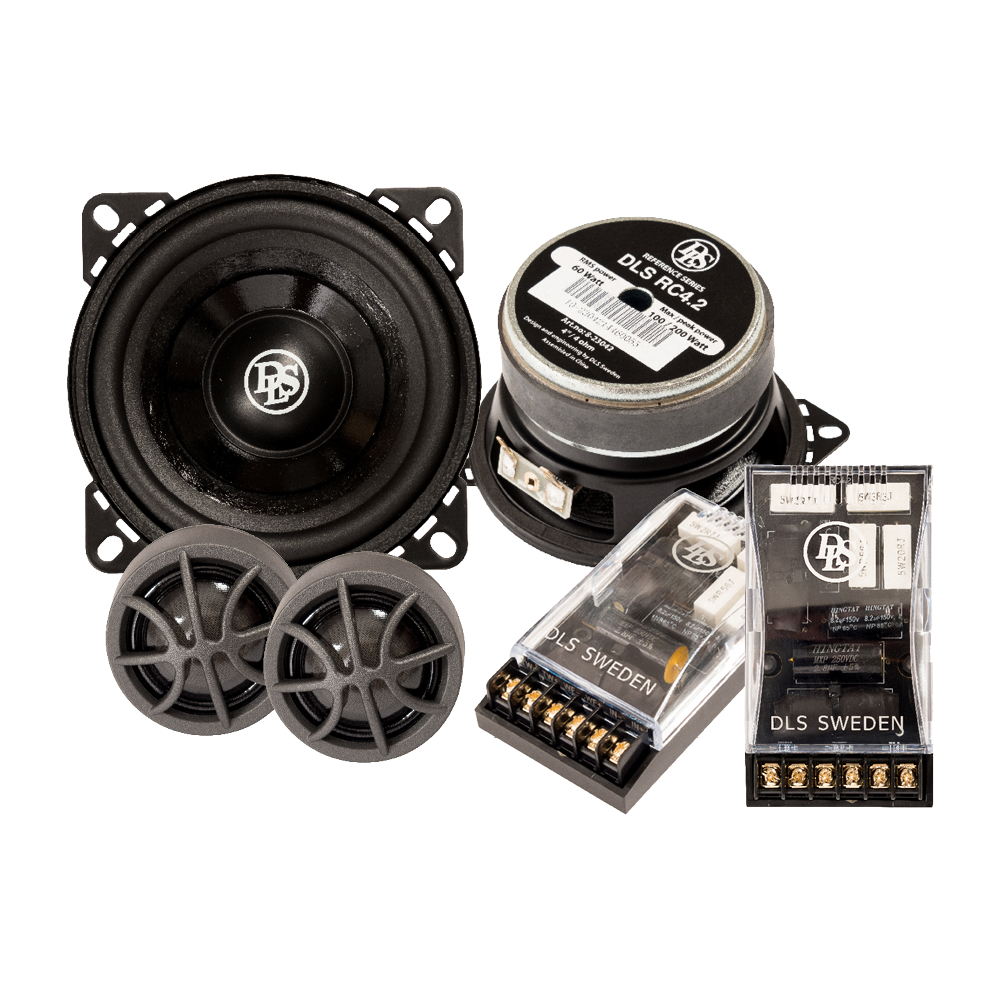

The Reference Power choice when 4” is max installation size. Coated paper woofer with rubber surround, 80mm magnet with vented pole piece for high power handling.
High quality crossovers with tweeter level select to fine tune 25 mm silk dome tweeters to a perfect treble balance in the car. Angled/recessed tweeter cups & woofer grilles are included in the kit.
TECH SPECS AND FEATURES
Crossover Filter box with 12 dB slope (HP & LP)
Crossover point (Hz) 4500 Hz
Size of filter box 120 x 66 x 33 mm ( 4,72 x 2,6 x 1,3″)
single V/C Fs 80 Hz Re 3,3 Ohm Qms 4,8
Vas 1,4 liter Vas 0,05 Cuft Qes 0,68
Qts 0,6 Sd cm² BL 5,4
