Soundigital Sd400.4 Evo6 Power @ 4ω: 2 x 66w Rms power @ 2ω: 4 x 100w Rms bridge Power @ 4ω: 2 x 200w bridge Power @ 2ω: n/a Άμεση Παράδοση
https://www.soundigital.com/en/wp-content/uploads/2024/01/400.4-EVO6-ENG.pdf

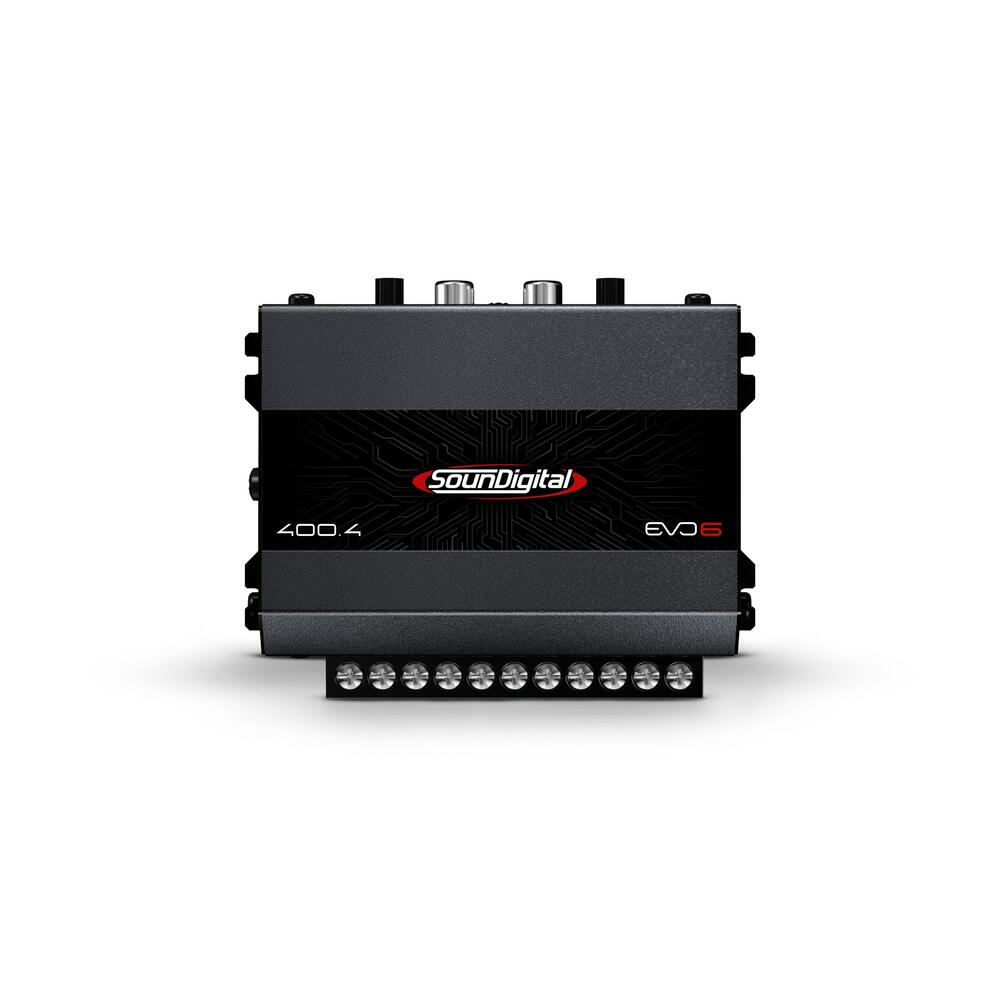

The 400.4 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
General Specifications
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
400.4 EVO6 – 4 OHMS
Power @ 4Ω: 2 x 66W RMS
Power @ 2Ω: 4 x 100W RMS
Bridge Power @ 4Ω: 2 x 200W
Bridge Power @ 2Ω: N/A - https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Frequency Response (-3dB):
8Hz ~ 20kHzhttps://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
-
Low Pass filter (12dB/octave):80Hz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
High Pass filter (12dB/octave):80Hz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Operating Voltage:9v-16v
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
SNR:94db
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Input Sensitivity (RCA):0.2v-2v
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Current Draw (music):20A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Current Draw (max.):40.5A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Total Efficiency:78%
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Damping Factor (@100Hz nominal impedance):200
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Power Cable:
6mm² (9 AWG)
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Speaker Cable:
2 x 1.5mm² (15 AWG)
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Recommended Fuse (music):25A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Recommended Battery (minimum):40Ah
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Width:
3.4" / 8.6 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Length:
4.2" / 10.7 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Height:
1.8" / 4.6 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Weight:
0,437 kg / 0.963 l
