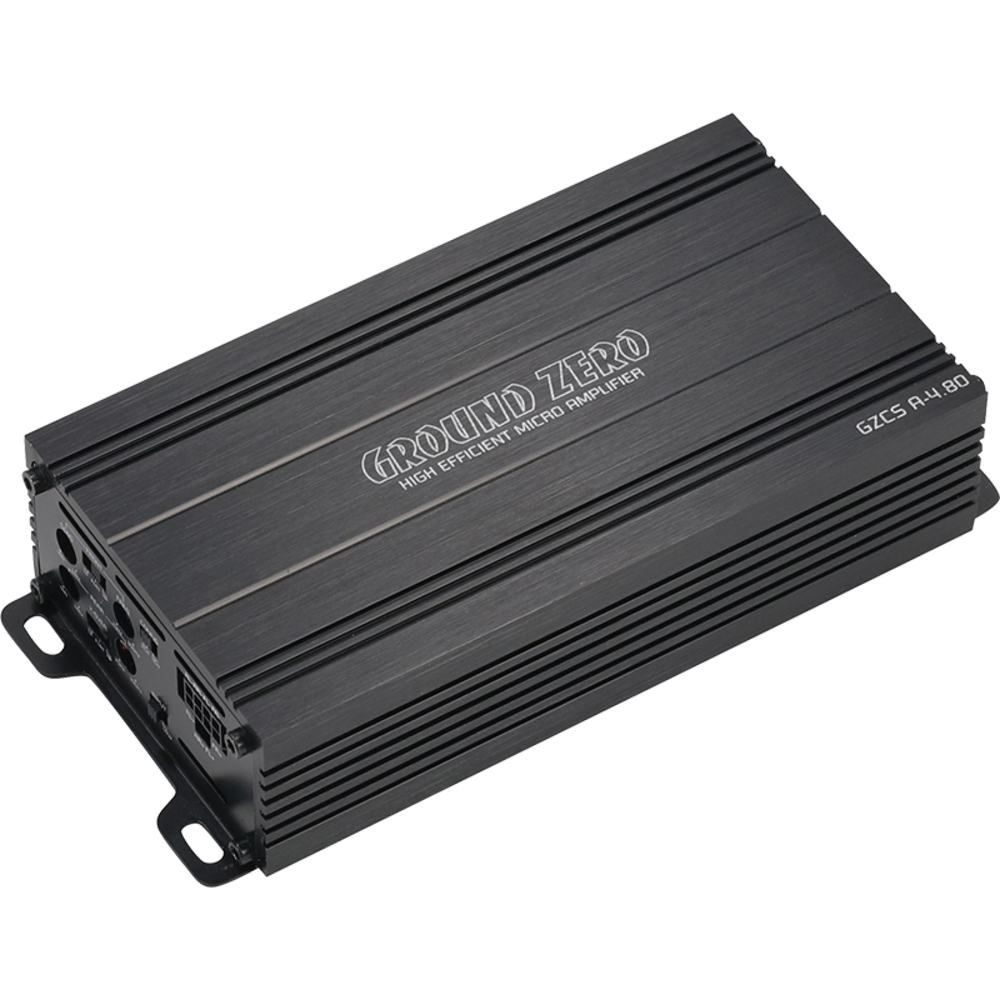

Class D micro amplifer
4-channel amplifier with small dimensions, integrated active crossover and auto-on function
Micro 4-channel amplifier
SMD components
Class D technology
Active crossover
2 ohms stable in stereo mode
Bridgeable for subwoofer use
ISO harness available separately
Model
Compact class D amplifier
Channels
4
Output Power (@ 4Ω)
4x 60 Watts RMS
Output Power (@ 2Ω)
4x 80 Watts RMS
max. Power (bridged) (@ 4Ω)
2x 160 Watts RMS
max. Ausgangsleistung (CEA-2006A / 10%THD+N)
2x 200 Watts
Frequency Response
10 Hz – 35 kHz
HPF / LPF / BPF
● / ● / ○
Bass Boost / Phase Shift
○ / ○
High-Level Input / Auto-on
● / ●
Remote
○
BIAS Setting
○
Linkmode
○
Dimensions (W x L x H)
82 x 151 x 40 mm / 3.23" x 5.94" x 1.57"
