High-Quality amplifier
4-channel amplifier with class A/B circuit, integrated active crossover and black anodized heatsink
4-channel amplifier
Class AB technology
Variable active crossover and bass boost
Stable power supply
Large terminals

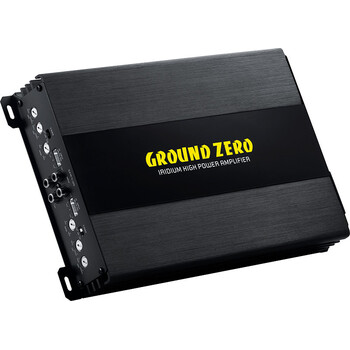

Black anodized heatsink with Ground Zero lettering
Hi
Model
High-Quality Class A/B amplifier
Channels
4
Output Power (@ 4Ω)
4x 70 Watts RMS
Output Power (@ 2Ω)
4x 120 Watts RMS
max. Ausgangsleistung (CEA-2006A / 10%THD+N)
2x 275 Watts
Ouput power (@ 4Ω) bridged
2x 240 Watts RMS
Frequency Response
10 Hz – 30 kHz
HPF / LPF / BPF
● / ● / ○
Bass Boost / Phase Shift
○ / ○
High-Level Input / Auto-on
● / ●
Remote
○
BIAS Setting
○
Linkmode
○
Dimensions (W x L x H)
192 x 284 x 49 mm / 7.56 x 11.18 x 1.93″gh-level input with auto-on function
