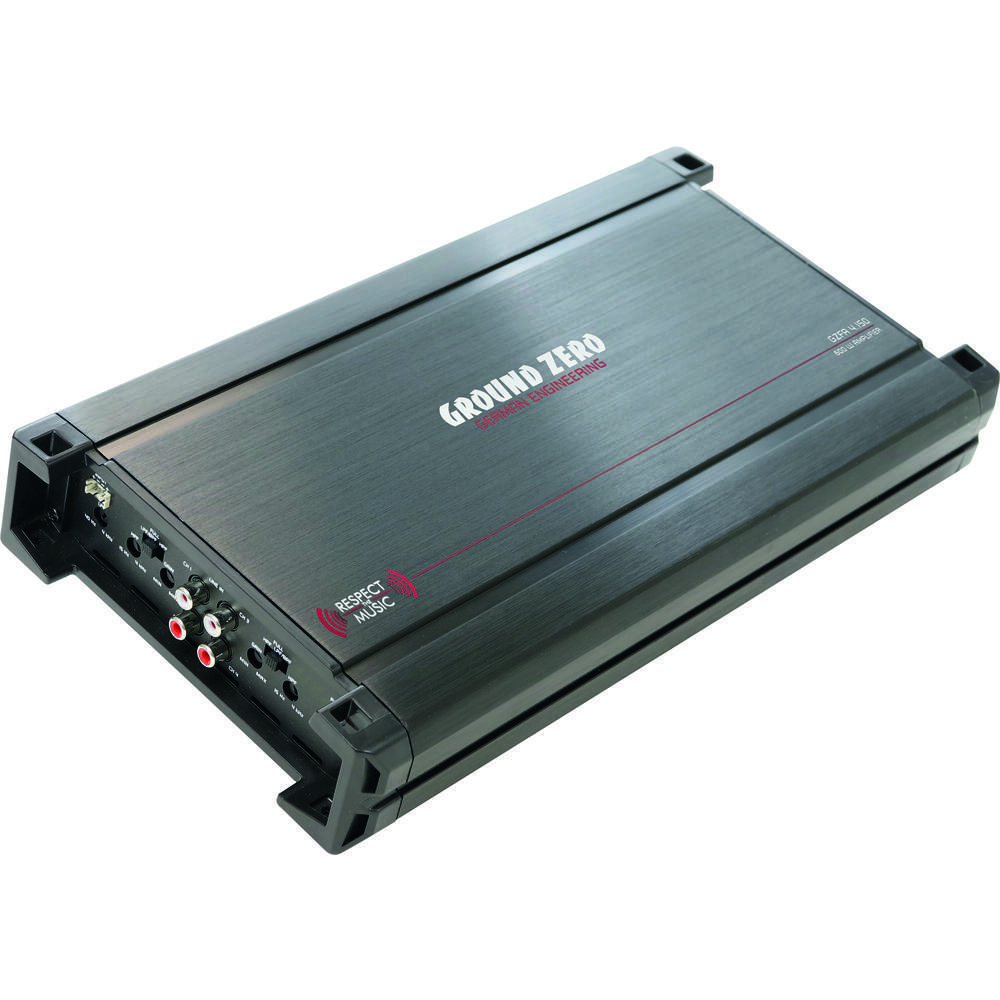

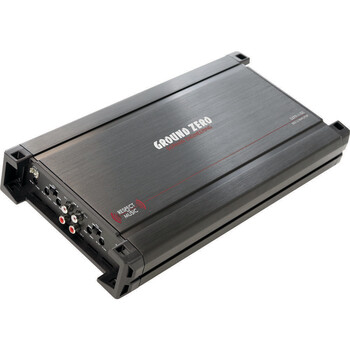

Model GZFA 4.150
Amplifier type 4-channel
Output power (RMS)
@ 4 Ω CEA-2006-A
4x 100 W
(1% THD+N)
Output power (RMS)
@ 2 Ω CEA-2006-A
4x 125 W
(1% THD+N)
Max. bridged power @ 4 Ω
2x 300 W
(10% THD+N)
Low pass filter 40 Hz – 4 kHz (@ 12 dB/oct)
High pass filter (subsonic) 15 Hz – 4 kHz (@ 12 dB/oct)
Frequency range 15 Hz – 22 kHz
Signal-to-Noise ratio (SNR) > 93 dB
Overall distortion (THD+N) < 0.1%
Input sensitivity 200 mV – 4 V
speaker wiring ≥1.5 mm² / 16 AWG
Recommended power wiring ≥10 mm² / 8 AWG ≥20 mm² / 4 AWG
Fuse(s) 40A 2x 30A
Dimensions
192 x 53 x 367
7.09” x 2.09” x 14.45
