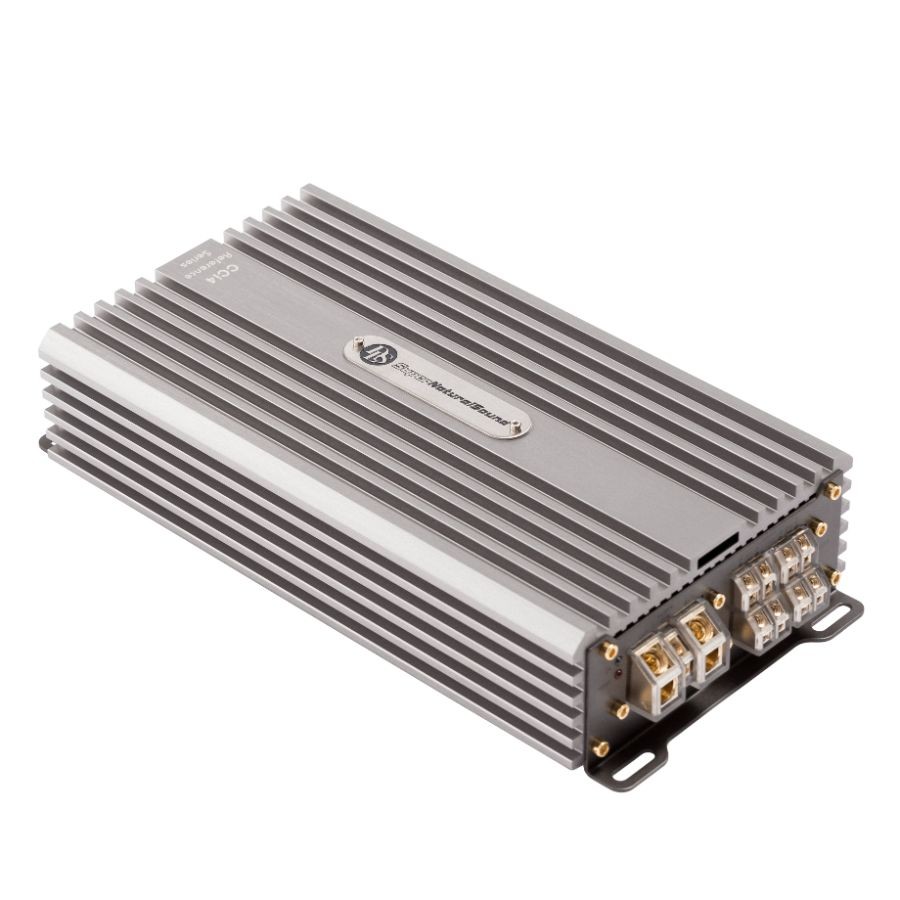

Dls Ενισχυτής αυτοκινήτου Class-A-B 4 Channel DLS CCi-Series CCi4
| Channels |
Four |
|---|---|
| Amplifier class |
AB |
| Power RMS (2 Ohm) |
4x70W |
| Power RMS (4 Ohm) |
4x50W |
| Bridged Power RMS (4 Ohm) |
1x140W |
| THD |
20 kHz <0,25% |
| S/N ratio |
> 110 dB |
| Freq.range |
10 – 55 000 Hz |
| High Pass Filter |
50 – 500 Hz |
| Low Pass Filter |
50 – 500 Hz |
| Dimension (W x D x H) |
129 x 260 x 51mm |
| Weight |
1,8 kg |
Designed and sound tuned by Gordon Taylor in cooperation with DLS Sweden, the CCi series amplifiers all share the unique intelligent cooling of the small footprint casing.
The clever tooling of the heatsink gives more heat dissipation fins on the outside and on the inside there is a vast area of small fins that collect the heat from the air venting through the PC board, releasing it through thin slots in the side panels.
The CCi series produce more power and less heat – you can hear it and you can feel it!
The appraised DLS audiophile sound is secured by linear regulators supplying the preamp and a high bias drive circuitry. Combined with top quality output devices it simply makes DLS amplifiers sonically superior to competitors. Glimmering details with warm midrange and a class leading S/N ratio of over 110 dBA — the amp is dead quiet!
For perfect system integration the CCi series includes the proven DLS High level converter with Auto start for serious upgrading of OEM radios and wide range input level handling.
TECH SPECS AND FEATURES
Damping factor >250
Input sensitivity 1 – 4 Volt
Input impedance 6 kohm
Input impedance, high level 45 ohm
Power consumption (idle) 0,5 A
Power consumption (max) 40 A
High level input with auto start Yes
Integrated fan
