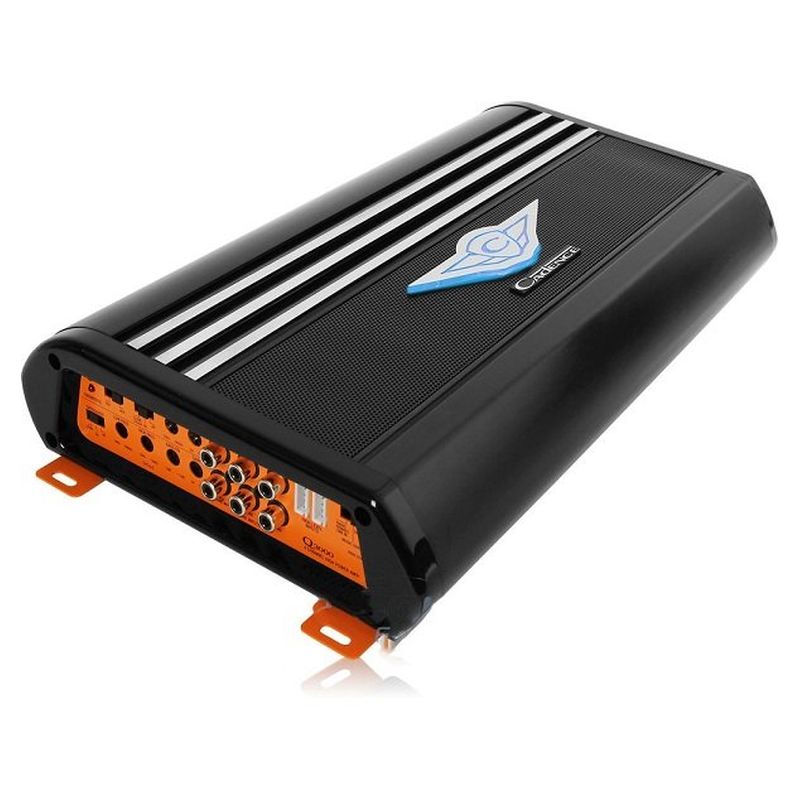

Cadence Q3000 Class AB 4-Channel Amplifier
Specifications
4 Ohm RMS Power: 90 Watts x 4
2 Ohm RMS Power: 135 Watts x 4
4 Ohm Bridged RMS Power: 270 Watts x 2
PEAK Power: 1200 Watts
Minimum THD: < 0.1% Frequency Response: 10Hz - 40 kHz S/N Ratio: > 97dB
Damping Factor: > 198 @ 100Hz
Channel Separation: > 50dB
Input Voltage: 200mV - 8V
Fuse Rating: 25 amps x 2
Dimensions (L x W x H): 14.9" x 7.9" x 2.4" (37.9 x 20 x 6.1)
Features
• High Speed MosFET Power Supply
• BiPolar Professional Audio Grade Output Transistors
• 16V Capable Power Supplies
• Copper Rail PCB Architecture
• 12dB Crossover Circuitry
• Bass EQ: 0dB - +12dB (Ch3&4)

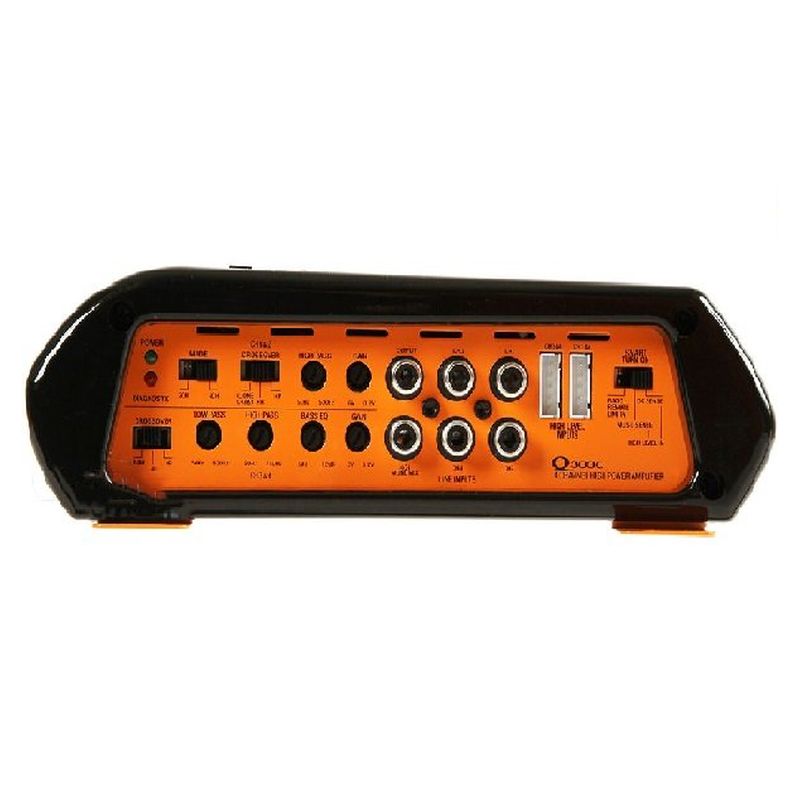

• Crossover Modes: Low Pass / Band Pass, Full Range, High Pass
• Input Modes: 2Ch, 4Ch
• Low Pass Frequency: 50Hz - 500Hz (Ch3 & 4)
• High Pass Frequency: 50Hz - 500Hz (Ch1 & 2), 50Hz - 150Hz (Ch3 & 4)
• High Level Inputs
• Line Level Inputs
• Smart Turn On: Music Sense / DC Sense (High Level Inputs)
• Power & Diagnostics LED Indicators
• Accepts 4 Gauge Power & Ground Wire // 14 Gauge Speaker Wire
