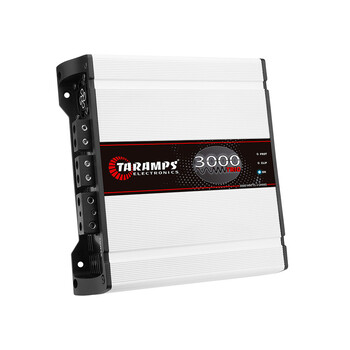

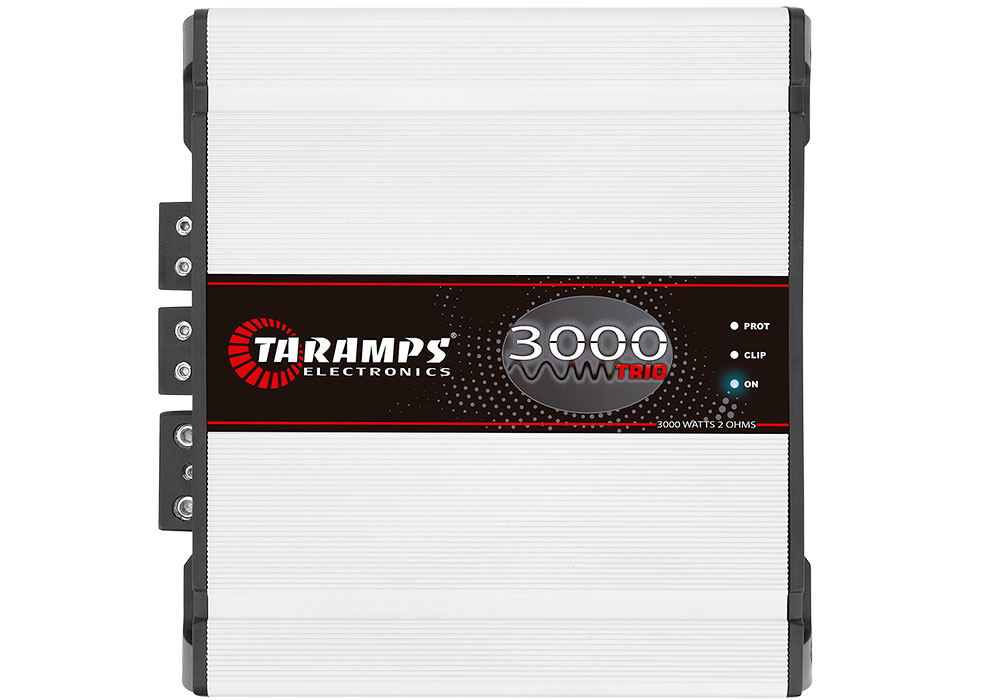

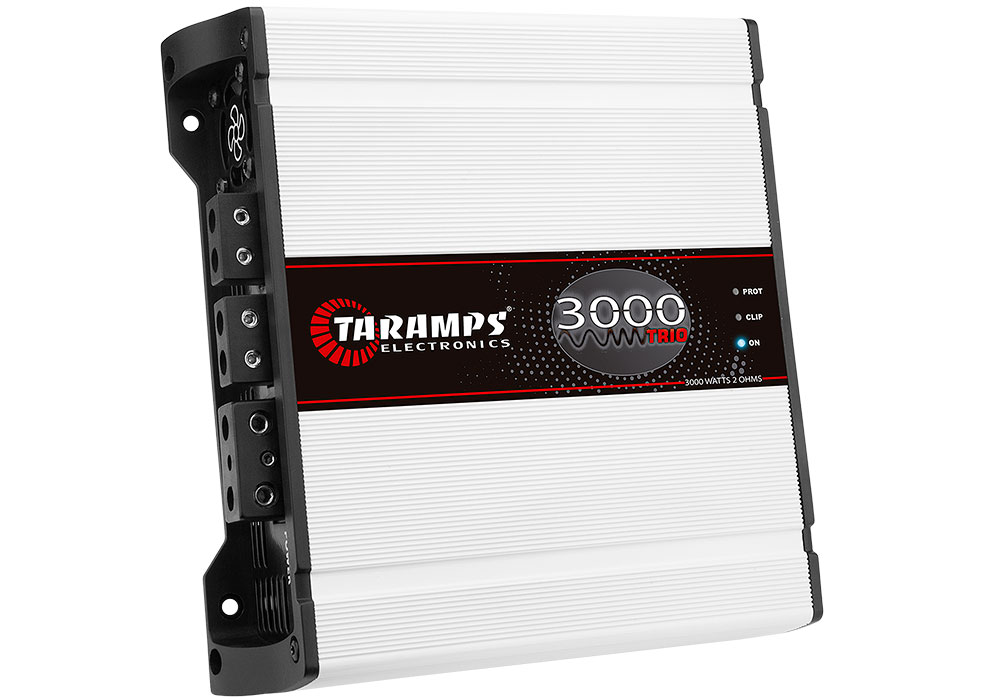

Taramps Trio 3000 2 Ohm
The TRIO 3000 amplifier is designed with the highest technology and performance for automotive sound systems. It is designed for use in trio systems, using a single amplifier for loudspeakers, drivers and tweeters, with a maximum power of 3000Watts RMS at 2 OHMS. The TRIO 3000 has variable crossover and two outputs, each with individual gain adjustment. The LOW OUT has limiter for three different levels and variable bass-boost, while the HIGH OUT has a fixed limiter. Operation class (PT) Classe D Number of Channels (PT) 01 Maximum power (PT) VIA LOW @12,6 VDC – 2 OHMS: 3000W RMS @12,6 VDC – 4 OHMS: 1920W RMS VIA HIGH @12,6 VDC – 2 OHMS: 300W RMS @12,6 VDC – 4 OHMS: 200W RMS Input Sensitivity (PT) 180mV Signal to Noise Ratio (PT) >88dB Frequency response (PT) VIA LOW 10Hz – 700Hz (X-Over Low / High = 700) 10Hz – 1200Hz (X-over Low / High = 1200) VIA HIGH 700Hz – 20KHz (X-Over Low / High = 700) 1200Hz – 20KHz (X-Over Low / High = 1200) Crossover high pass (HPF) (PT) 10Hz ~ 80Hz (-12dB/8ª) Variável Crossover low pass (LPF) (PT) 700Hz ~ 1200Hz (-12dB/8ª) Variável Bass Boost (PT) 0 ~ 10,5dB (50Hz) Limiters/anti-clipping (PT) VIA LOW Selecionável 1% / 5 % / 10% VIA HIGH Anticlip Efficiency (PT) 76% Input Impedance (PT) 10K Ohms Protection system (PT) Curto na saída, curto na saída em relação ao GND, proteção de tensão baixa/alta e proteção térmica. Min. Supply Voltage (PT) 9VDC Maximum Power Supply Voltage (PT) 16VDC Consumption at rest (PT) 1,60A Maximum music consumption (PT) 165A Maximum consumption in sinusoidal signal (PT) 315A Dimensions (H x W x D) mm (PT) 229 x 65 x 216mm Weight (PT) 2,5Kg
