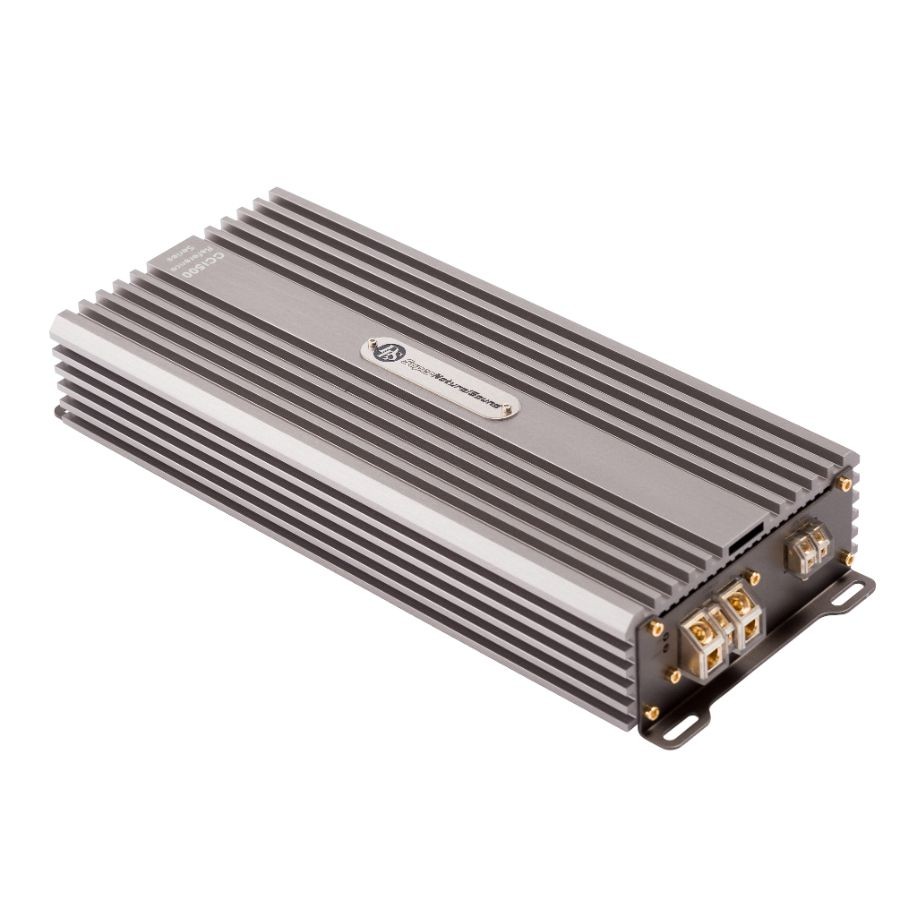

Dls Ενισχυτής αυτοκινήτου Class-A-B 1 monoblock DLS CCi-Series CCi500
| Channels |
Mono |
|---|---|
| Amplifier class |
D |
| Power RMS (1 Ohm) |
1x550W |
| Power RMS (2 Ohm) |
1x370W |
| Power RMS (4 Ohm) |
1x200W |
| S/N ratio |
>92 dB |
| Input Sensitivity |
1-4V |
| Freq.range |
10 – 2500 Hz |
| Low Pass Filter |
35 – 250 Hz |
| Dimension (W x D x H) |
129 x 320 x 51mm |
| Weight |
2,4 kg |
Designed and sound tuned by Gordon Taylor in cooperation with DLS Sweden, the CCi series amplifiers all share the unique intelligent cooling of the small footprint casing.
The clever tooling of the heatsink gives more heat dissipation fins on the outside and on the inside there is a vast area of small fins that collect the heat from the air venting through the PC board, releasing it through thin slots in the side panels.
The CCi series produce more power and less heat – you can hear it and you can feel it!
The advanced class D circuitry in CCi500 brings out massive, clean power to keep perfect control of the cone in any subwoofer. For perfect system integration the CCi series includes the proven DLS High level converter with Auto start for serious upgrading of OEM radios and wide range input level handling.
TECH SPECS AND FEATURES
Damping factor >140
Input impedance 22 kohm
Input impedance, high level 45 ohm
Subsonic filter 30 Hz, ON/OFF
Grand bass filter Bass boost 0- +6dB variable
Phase control for subwoofers 0 or 180 degrees switch
High level input with auto start Yes
Power consumption (idle) 0,8 A
Power consumption (max) 80 A
