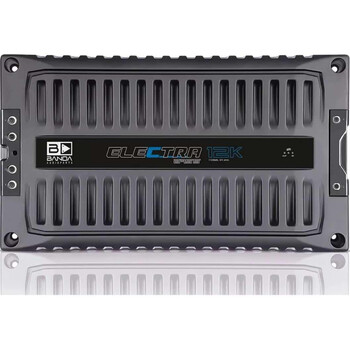

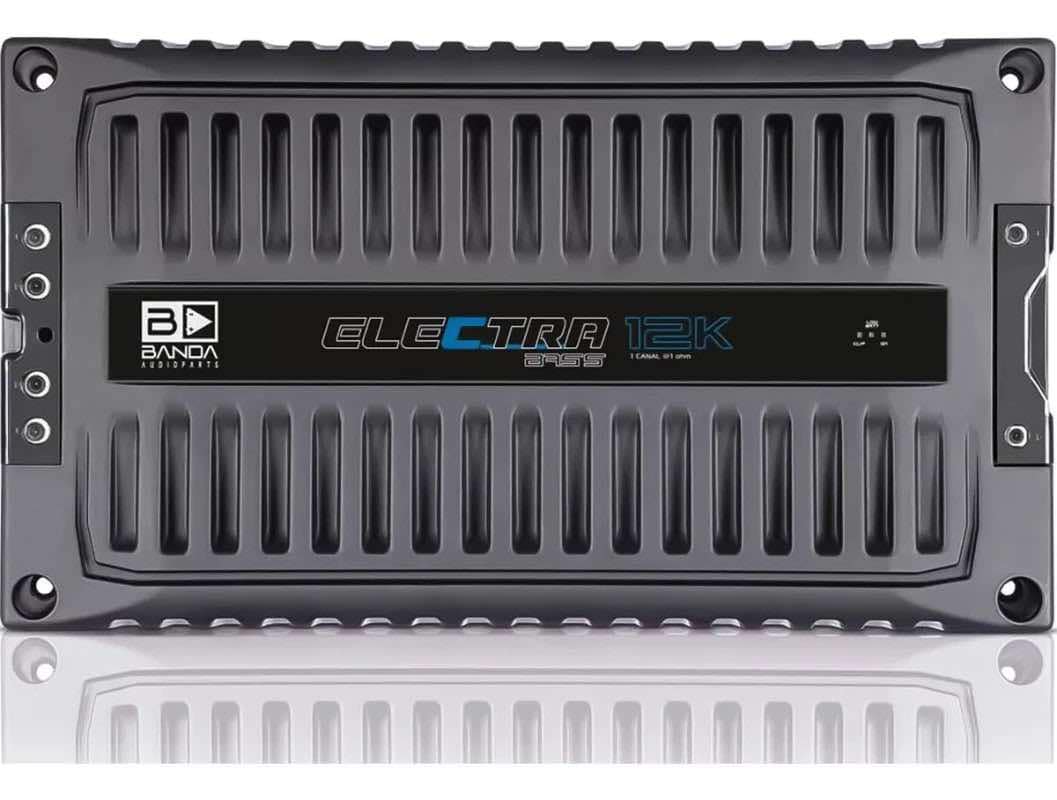

Electra Bass 12K - 1Ω Version
Total power 14.4 @ 1 ohm: 14200 watts RMS
Total power 14.4 @ 2 ohms: 10300 watts RMS
Total power 12.6 @ 1 ohm: 12600 watts RMS
Total power 12.6 @ 2 ohms: 9200 watts RMS
Efficiency @ 2 Ohm: 82
Efficiency @ 1 Ohm: 73
Input voltage: 9 - 15V
Input impedance: 100K Ohms
THD+Noise: <1%
Input sensitivity: 180mV - 2.5V
SNR: 85dB
Frequency response (key OFF): -
Frequency Response: 20 to 600Hz (-3dBs)
Bass Bosst @ 45Hz: Variable 0 to +18dBs
HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley
LPF (Crossover): 80 to 600Hz @ 12dB/octave Linkwitz-Riley
Recommended fuse: 600 A
Current at rest: 4.0 A
Average current consumption (sinusoidal): 1380 A
Average current draw (music): 600 A
Power cable cross-section (min. recommended): 2x 50mm²
Speaker cable (min. recommended cross section): 2x 10mm²
weight: 9kg
height: 6cm
width: 26,6cm
Depth: 44,4cm
