Interface για κάμερα οπισθοπορείας και 2 εισόδους video για τα παρακάτω οχήματα
Brand |
Model |
Navigation |
Alfa Romeo |
Tonale (965) από 05/2022 |

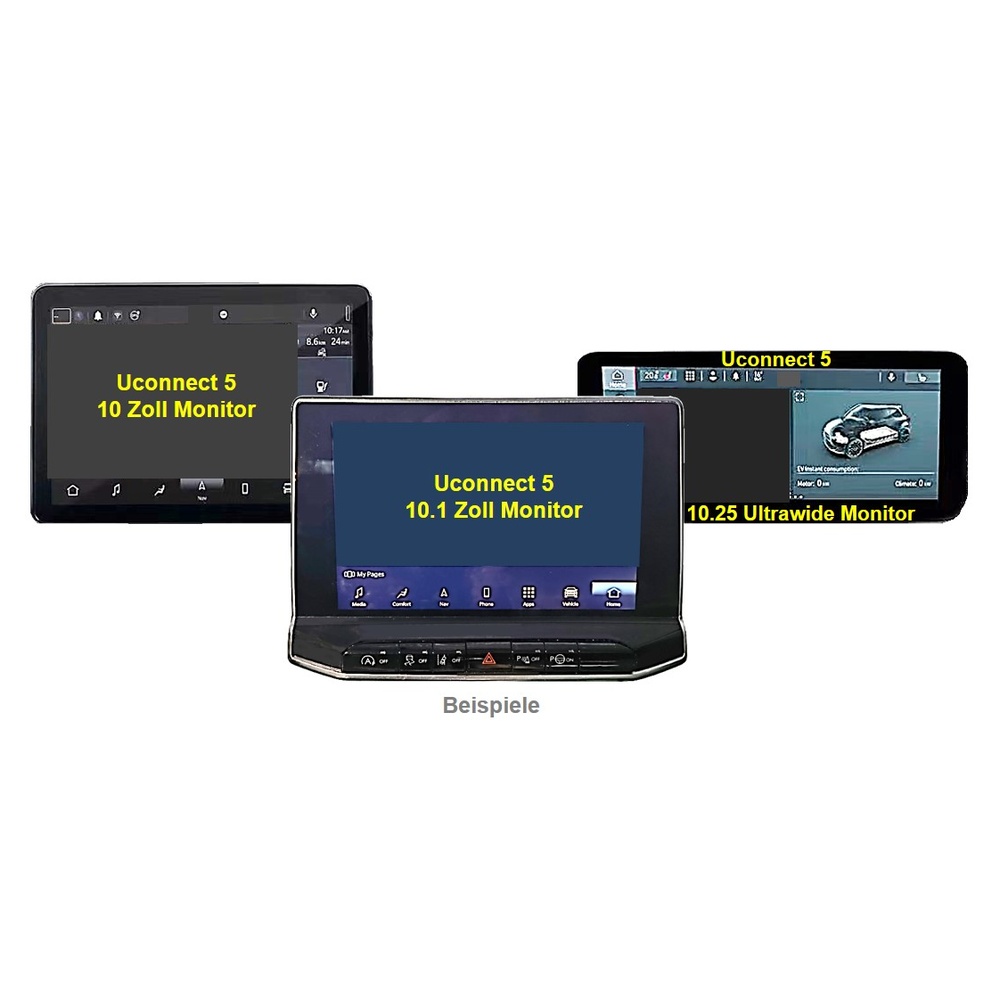

Connect 10.25inch or Connect NAV 10.25inch - (R1 INT ER) with ultra-wide tablet monitor with separate head-unit |
Fiat |
Ducato3 (series 8) από 2021
Tipo (356) από 2023 |
Uconnect5 R1 EXT ER with 10inch tablet monitor with separate head-unit |
500, 500e από 2019 |
Uconnect5 R1 INT ER with 10.25inch ultra-wide tablet monitor with separate head-unit |
Jeep |
Compass από 2021 |
Uconnect5 R1 EXT ER with 10.1inch tablet monitor with separate head-un |
Προσοχή: Μη Συμβατό για Jeep Compass από το 2021 με Uconnect5 8.4inch tablet monitor και all-in-one head unit.

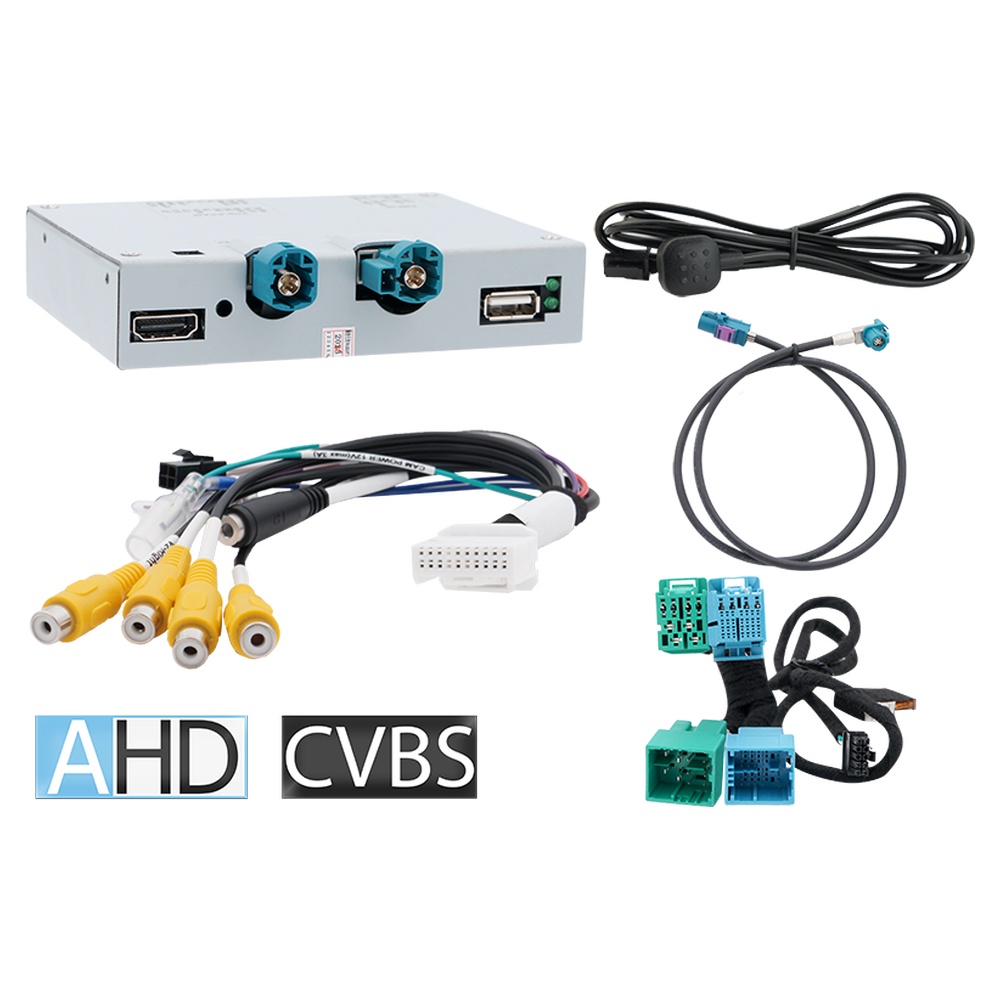

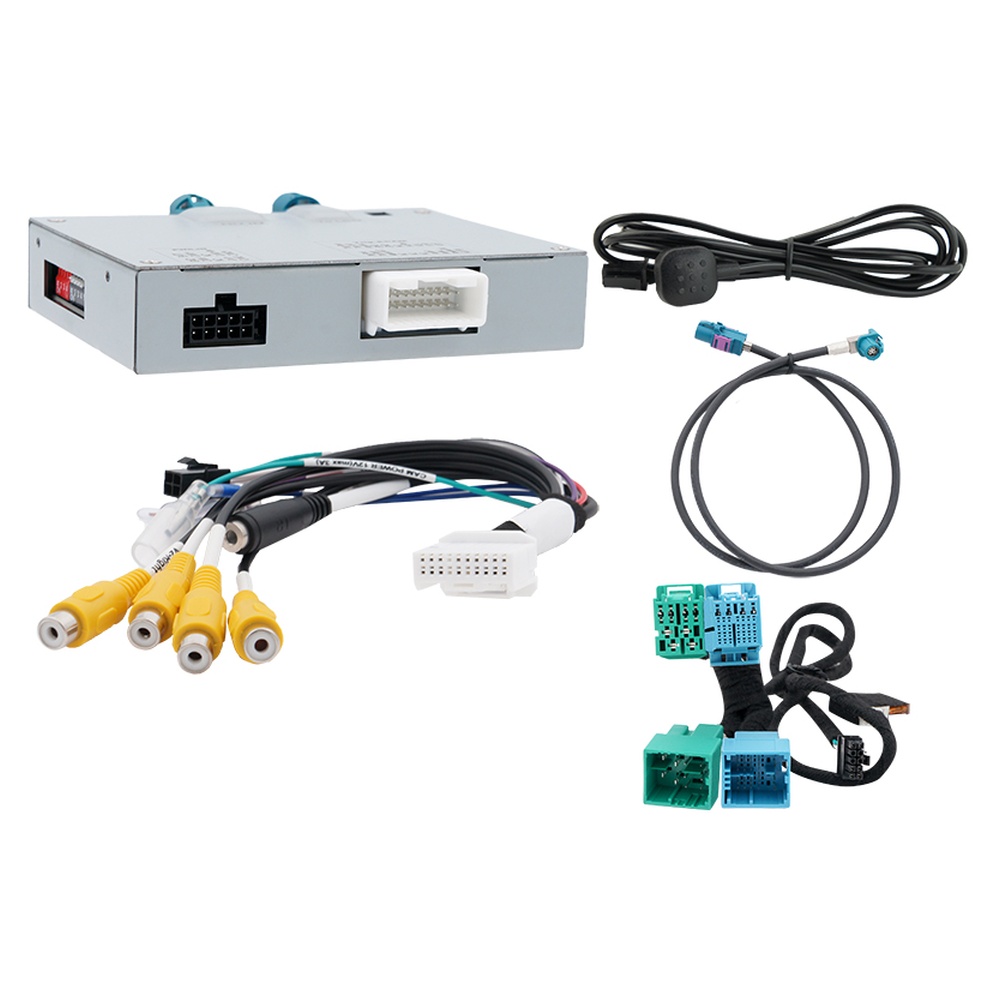

Video-inserter for factory-infotainment systems
1 CVBS/AHD-input for rear-view camera
1 CVBS/AHD-input for front camera
2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
All inputs NTSC and PAL compatible
Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
1 HDMI-input for HD rear-view camera or additional HDMI-sources (e.g., IOS/Android, laptop, streaming stick, DVD-Player, DVB-T2 Tuner, etc.)
Analogue audio output for HDMI source
Automatic switching to rear-view camera input while reverse gear is engaged
Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
Adjustable guide lines (fixed or movable) can be activated for rear-view camera (movable guide lines not available for all vehicles)
Picture free during the car ride (only for inserted video-sources)
